Photonic Universe Off-Grid Solar Lighting System with 40W solar panel, 2 x 2.5mm² solar extension c
Item: SL-L18AH-40W
MPN: SL-L18AH-40W

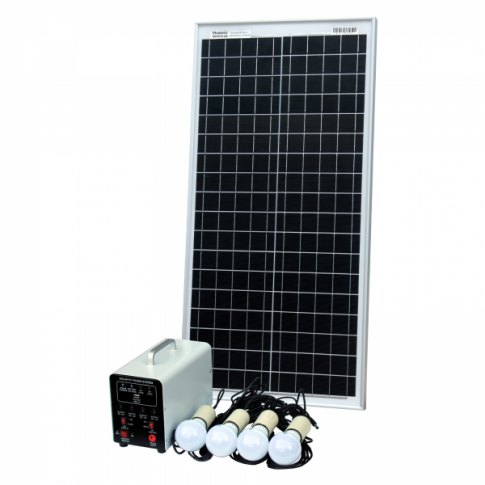

Off-Grid solar lighting system with 40W solar panel, 2 x 2.5mm² solar extension cables, solar controller, 4 x 5W energy saving LED lights, control unit with a lithium battery and cables, connectors and switches.
login to saveProduct Description
This solar lighting system is ideal for places with no mains electricity such as outhouses, sheds, garages, farms, stables, as well as for camping, travel and any outdoor activities (e.g. a for a yurt). The system is fully independent from the grid and works purely based on sunlight energy or the power stored in the battery.
During the daytime,the 40W solar panel chargesa 12V battery inside the control unit, which then provides power to the 4 x 5W 12V LED lights connected via front sockets on the control unit. In addition, there is a standard 5V USB socket for charging mobile phones and USB compatible devices.
The control unit has a built-in 18Ah Lithium battery with an automatic solar charge controller to manage the charging process and prevent overcharging. The solar input can take 18-25V DC power from any suitable solar panel, or charge from the mains using the SL-CH-3Amains adapter, and the battery can provide enough energy to power 4 LED lights continuously for9-10 hours, or twice as long if only two LED lights are connected.
The system is very convenient to use and install: the kit is supplied with 2 x 2.5mm² solar extension cables and the solar panel adapter cable has two standard MC4 connectors for secure connection with the panel output, and each LED light comes with a 5m cablewith anOn/Off switch. All cables come with connectors for a quick "plug and play" installation.
Details
System specifications:
System voltage: 12V
Battery capacity: 18Ah
LED lights power: 5W
Length of LED lights cables: 5m
USB output current: 0.8A
Max DC output current: 2A
Control unit case size: 220 x 130 x 150 mm
Control unit case weight:6.86 kg
Max solar input power: 100W
Solar input voltage: 18-25V
Solar panel specifications:
Peak power: 40W
Maximum power voltage: 19.72V
Maximum power current: 2.03A
Open circuit voltage: 20.83V
Short circuit current: 2.16A
Power allowance range: +/- 3%
Dimensions: 630 x 400 x 25mm
Weight: 2.7 kg
4 mounting holes
2 x 90cm of high quality single core solar cable 2.5mm cross section
Male and female MC4 connectors attached
This product is covered by a1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
In addition, solar cells are guaranteed to produce at least 90% of nominal power in 10 years after purchase and at least 80% of nominal power in 25 years after purchase. This warranty is provided by the manufacturer of solar cells.
Installation
Installation is very easy: the solar panel or mains adaptor should be connected to the charging socket at the front side of the control box via the correct adaptor wire (included),and 4 x LED light cables should be connected to the front 12Vsockets. Then you should turn the control unit switch to ON and the battery will begin charging. Each LED light comes with a separate On/Off switch for your convenience.
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
