Photonic Universe Remote meter/display MT11 with 5m cable for 10A-30A DM series dual battery MPPT so
Item: MT11
MPN: MT11

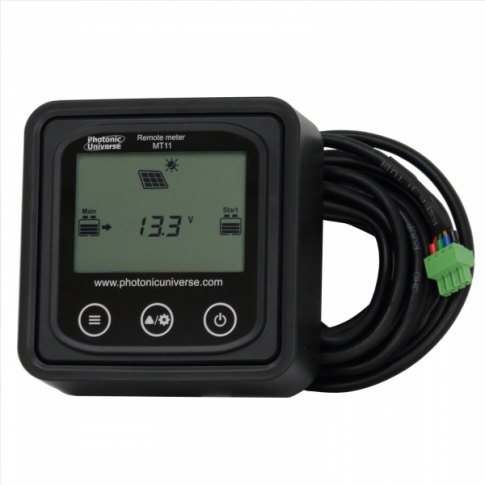

Remote meter / display with 5m cable suitable for DM Series Dual Battery MPPT solar charge controllers
login to saveProduct Description
This high quality, brand new remote display / monitor can be used with 10A - 30A dual battery MPPT solar charge controllers/regulators (DM series). The unit displays important charging parameters such as:
Battery and solar panel voltages
Battery and solar panel current
Battery state of charge
Accumulated charge and discharge energy
Minimum/maximum recorded voltage
Temperature (of the controller, or of the battery using an optional external temperature sensor)
This meter allows you to change battery type and capacity, temperature unit, and track and reset the accumulated energy counter.
Compatibility
This meter is only compatible with DM series dual battery MPPT solar controllers:
High efficiency 10A dual battery MPPT solar charge controller with LCD display for solar panels up to 130W (12V battery system) / 260W (24V battery system)
High efficiency 20A dual battery MPPT solar charge controller with LCD display for solar panels up to 260W (12V battery system) / 520W (24V battery system)
High efficiency 30A dual battery MPPT solar charge controller with LCD display for solar panels up to 390W (12V battery system) / 780W (24V battery system)
If you already have one of our DM series dual battery MPPT solar controllers, this remote meter can easily be added atany timeto your system - simplyconnect the cable supplied with the meter to the RS485 socket of the controller.
The removable frame allows for either flush or surface mounting.
Click on the Details and Specifications tab for more information
Details
Specifications:
Suitable for 10A-30A dual battery MPPT solar charge controllers DM Series
Self-consumption: 4-13 mA (depending on backlight)
Operating temperature: -20C to +70C
Cable: RS485, 5m included
Size (without frame): 98.4 x 98.4 mm (with frame): 114 x 114 mm
Weight: 110g
This item comes with a detailed user manual and is covered by a 1 year warranty.For more information please refer to our Terms and Conditions.
Click on the Installation tab for further instructions.
Installation
This unit comes with a detailed user manual which explains connection and operations.
Please note:
If flush mounted, a recess is required in the mounting wall/ surface.
This unit is only suitable for use with DM series dual battery solar charge controllers.
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
