Photonic Universe TBB Power Mobile MEZZO III EMP30D power management module

Product Description

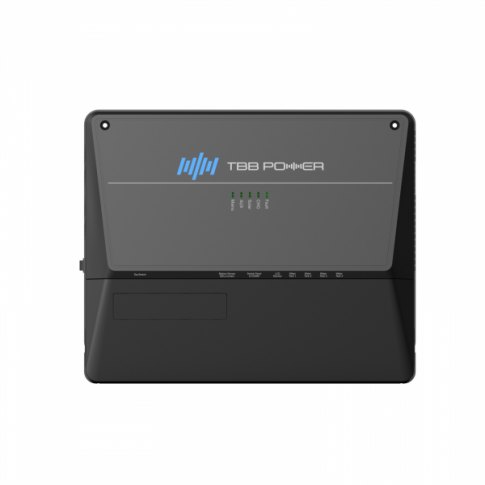

The MZ3-EMP30D is a fully integrated power management module designed for a MEZZO III system. Combining multiple functions into a single, compact unit, it simplifies energy management with advanced features, precise monitoring, and smart control capabilities.

The MZ3-EMP30D combines the following functions into a single box:


30A AC Charger.
30A MPPT Solar Charger.
Vehicle Charger Relay (VCR): 60A continuous, 100A for 20 minutes.
Smart Sensor Compatibility: Gas, levelling, TPMS, and more.
Water Tank Measurement: Supports up to 4 tanks.
Smart DC Load Management: Multiple outputs for tailored control.




Key Features:

Smart Battery Charger


12V 35A capacity (30A charging current).
Multi-stage adaptive charging algorithm for optimised battery health.
Active Power Factor Correction (PFC) for efficient charging.
Temperature compensation charging to adapt to environmental conditions.
Float charge support for starter battery.




Integrated Solar Charge Controller


Supports both PWM and MPPT charging with a 30A capacity for solar energy systems.




Comprehensive Outputs and Load Management


15 built-in fused outputs for smart DC load control.
5 relay-controlled outputs for devices like water pumps and lighting.
3 dimmable outputs for adjustable lighting solutions.
6 constant-alive outputs and 1 permanent output for continuous power needs.




Robust Vehicle Charger Relay (VCR)


Supports 60A continuous current and 100A for 20 minutes.




Smart Monitoring and Protection


Built-in shunt for precise battery measurement.
Battery low voltage protection to prevent deep discharge.
Built-in battery switch for isolating the battery during storage.
Supports 4 water tank sensors for comprehensive water level monitoring.




Advanced Communication Capabilities


Built-in Master Bluetooth for connecting to Bluetooth sensors.
RF communication for wireless switches.
Compatible with RS485 and CAN communication protocols.




Sensor and Measurement Compatibility


Supports smart sensors for gas detection, levelling, TPMS, and more.
Includes water connectors and screw terminals for easy integration.




High-Quality Build


Features automotive-class connectors for durability and reliability.
Designed for precise and efficient performance in challenging environments.




The MZ3-EMP30D offers unparalleled functionality, making it the ultimate all-in-one solution for energy storage, management, and control.

Supplied with a 0.2m battery sensor & dry cable, 0.5m Switch panel & COMM cable with RJ45 adapter, and a 1.5m AC cable with UK plug.
