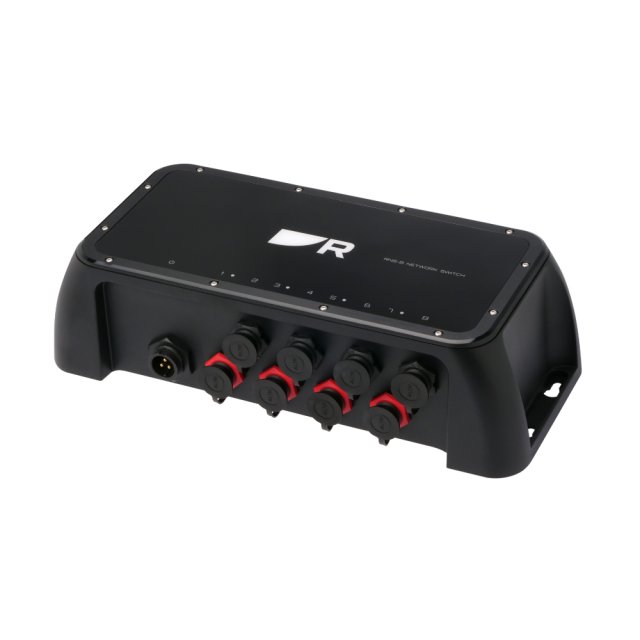

Raymarine RNS8 Gigabit Raynet Network Switch with 4 x POE ports

Product Description

The RNS-8 network switch is a premium 8 port Gigabit RayNet network switch with 4 dedicated power-over-ethernet (POE) ports. media only screen and (max-width: 768px) } 8 RayNet Ethernet gigabit ports for fast and reliable connectivity 4 dedicated Power-Over-Ethernet (POE) ports for powering cameras and remotes Rugged IPX6/IPX7 construction Reliable, waterproof RayNet connector Ethernet cable ports Designed for simple bulkhead mounting LED power and network port status indicators Unmanaged- simply plug and play with Raymarine devices. Remote diagnostics and performance monitoring via web browser For extended networks, up to 8 RNS-8 switches can be daisy-chained together

Technical Specifications

Physical

Length287.63mm (11.32")Height125.5mm (4.94")Depth78mm (3.07")Port Seperation Distance17.38mm (0.68")Weight960.5g (2.12lbs)

Power

Nominal supply voltage12 or 24 VdcOperating voltage range9 - 31.2 VdcPoE operating voltage range10.8 - 31.2 VdcPower consumption160W (Max) @12Vdc
150W (Max) @24VdcCurrent13.3A (Max) @ 12Vdc
6.25A (Max) @24VdcInline fuse rating15A @ 12Vdc
8A @ 24VdcThermal breaker rating20A @ 12Vdc
10A @ 24Vdc

Network

Network connection ports4 x RayNet (10/100/1,000 Mbits/s) connection ports
4 x PoE Raynet (10/100/1,000 Mbits/s) connection portsPoE ClassesSupports PoE classes 0 to 4, with 30W Max power for each portIEEE StandardConforms to IEEE 802.3at

Enviroment

Operating temperature-25°C to 55°C (-13°F - 131°F)Non-operating temperature-30°C to 70°C (-22°F - 158°F)Relative humidityup to 93% @ 40°C (104°F)Waterproof ratingIPX6 & IPX7

Conformance

StandardsEN 60945:2002 (Europe, Australia New Zealand)
ICES-003 (Canada)
CFR47 Part 15 (USA)
IACS section E10 (Japan / ChinaProduct markingsUKCA
CE
Australian Tick
WEEE Directive

The RNS-8 network switch is a premium network switch for integrated Raymarine chartplotter systems. Use the RNS-8 to integrate Axiom displays with radars, sonar modules, and FLIR thermal cameras. The RNS-8 features 4 dedicated Power-Over-Ethernet (POE) ports for integrating and powering POE-compatible devices like CAM300 marine IP cameras and RMK-10 remote keypads.  The RNS-8 also supports networking with Raymarine YachtSense digital control systems and the YachtSense Link marine mobile router. Multiple RNS-8 switches can be daisy-chained together for extended Raymarine networks. The RNS-8 is simple to install and requires no complicated setup.In The Box RNS-8 Network switch Documentation pack Fixing screws, x4 (M4, 8.94 x 25 mm) Power cable, 1.5 m (4.9 ft)
