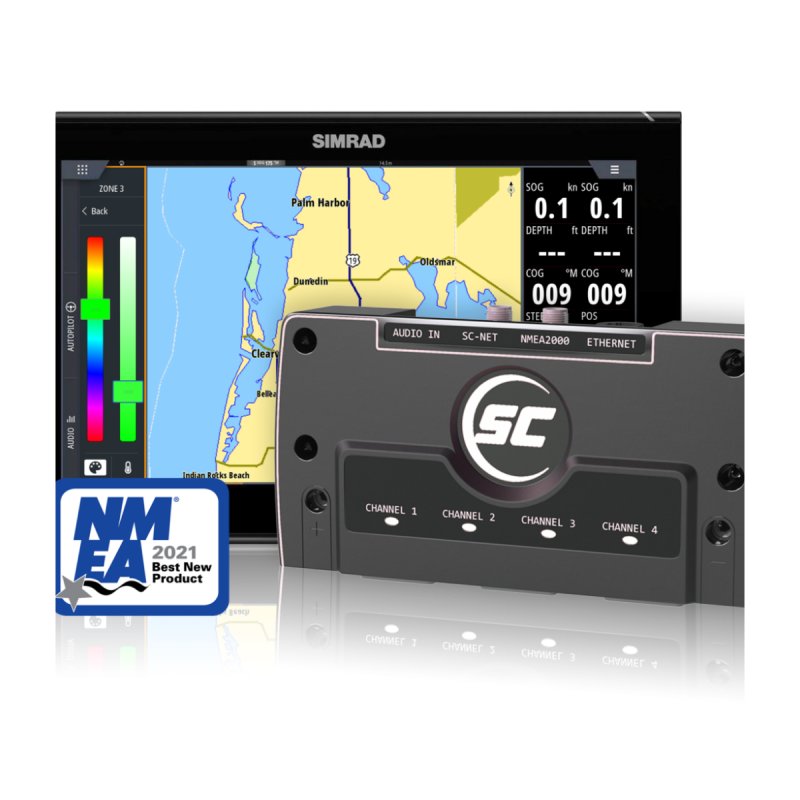

Shadow-Caster Light Commander NMEA2000 Multizone Lighting Controller
Item: SCM-LC-N2K
MPN: SCM-LC-N2K
Light Commander NMEA2000 Multizone Lighting Controller
login to saveProduct Description
The Shadow-Caster SCM-LC-N2K is the NMEA 2000-only version of the Light Commander, a multi-zone lighting controller built to the NMEA 2000 lighting control standard. It controls up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, and stores lighting scenes.
It is an all-in-one design with Deutsch-style IP67 connections, six instant-on switch inputs and a built-in audio input for music sync. The PLUS versions (SCM-LC-N2K-PLUS, SCM-LC-N2K-PLUS-V2) add an MFD network port and, on the V2, Wi-Fi and Bluetooth; the MFD network interface listed by Shadow-Caster is for the PLUS versions only.
- Zones: up to 6 per module (4 RGB/RGBW), expandable to 12 or 18 with additional SCM-LC-N2K modules
- Connectivity: NMEA 2000 only
- Supply: 10-30 V; 15 A per RGB(W) zone, 60 A max
- Protection: digital over-current at 15 A per channel; IP67 enclosure
- Inputs: 6 instant-on switch inputs; 3.5 mm audio input for music sync
- Size: 8.9 in × 4.75 in × 1.8 in (226 × 120 × 46 mm)
