Shadow-Caster Multi-zone Lighting Controller for NMEA 2000 & Ethernet connectivity with integrated H
Item: SCM-LC-N2K-PLUS-V2
MPN: SCM-LC-N2K-PLUS-V2
Multi-zone Lighting Controller for NMEA 2000 & Ethernet connectivity with integrated HTML interface and WiFi & Bluetooth for smartphone/app control
login to saveProduct Description
Description

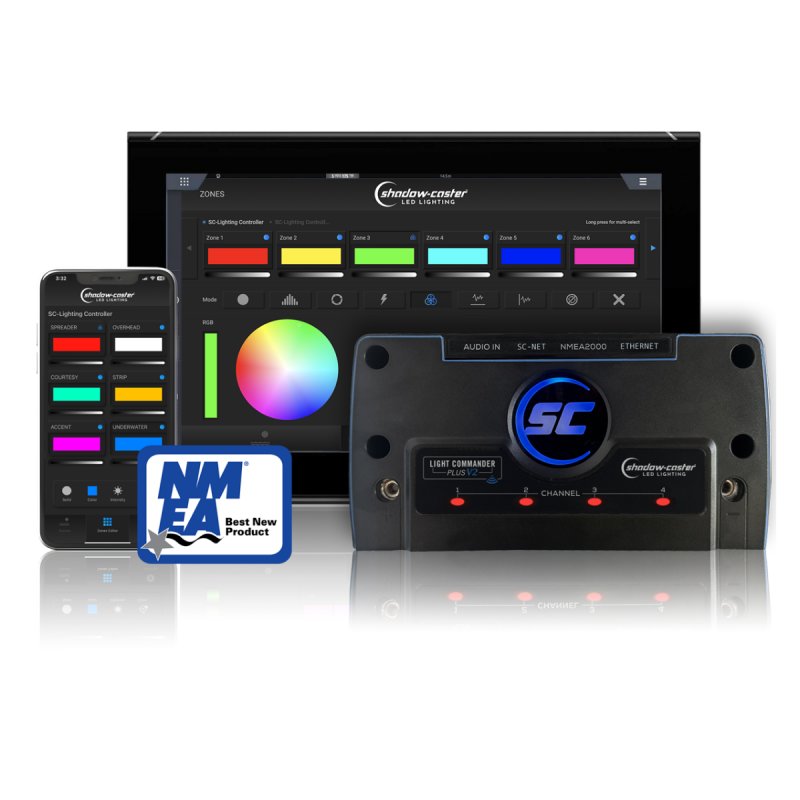

The Shadow-Caster SCM-LC-N2K-PLUS-V2 is the top version of the Light Commander multi-zone lighting controller: NMEA 2000 and Ethernet connectivity with an integrated HTML interface, plus Wi-Fi and Bluetooth for control from a smartphone app.
It controls up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, and can be linked to compatible MFDs (Garmin, Simrad, Lowrance, B&G, Raymarine and Furuno are listed by Shadow-Caster) to create scenes and name zones. The SCM-LC-N2K and SCM-LC-N2K-PLUS are separate versions without the Wi-Fi and Bluetooth feature set.
- Zones: up to 6 per module (4 RGB/RGBW), expandable to 12 or 18 with more modules
- Connectivity: NMEA 2000, Ethernet with HTML interface, Wi-Fi and Bluetooth
- Supply: 10-30 V; 15 A per RGB(W) zone, 60 A max
- Protection: digital over-current at 15 A per channel; IP67 enclosure
- Inputs: 6 instant-on switch inputs; 3.5 mm audio input for music sync
- Size: 8.9 in × 4.75 in × 1.8 in (226 × 120 × 46 mm)
