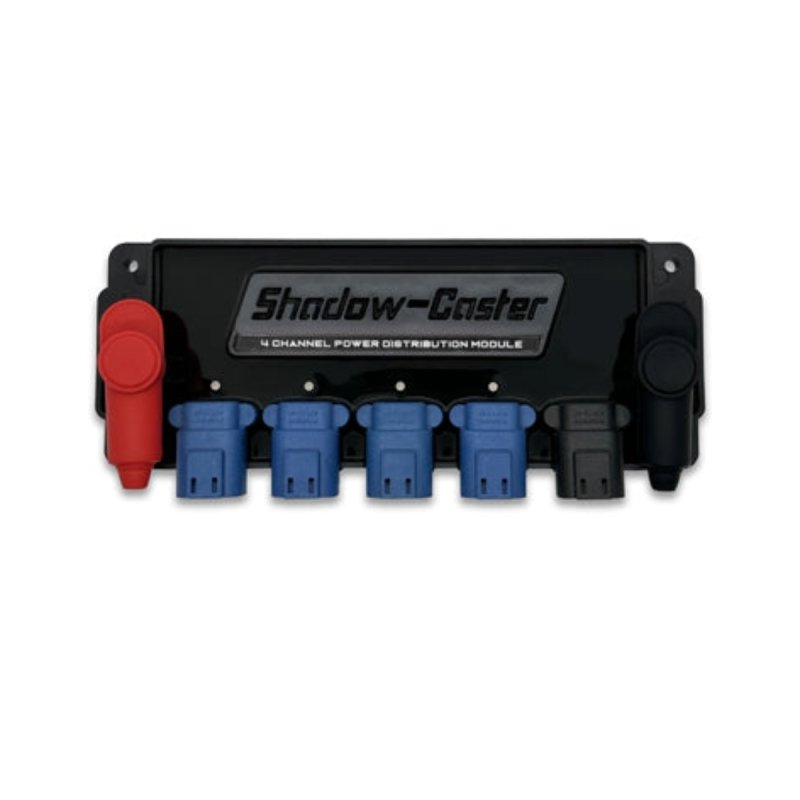

Shadow-Caster Power Distribution 4 Channel Underwater Light Power Relay Module
Item: SCM-PDCH4
MPN: SCM-PDCH4
Power Distribution 4 Channel Underwater Light Power Relay Module
login to saveProduct Description
The Shadow-Caster SCM-PDCH4 is a 4-position power control box that provides a convenient way to connect up to four Shadow-Caster underwater lights. It gives each output digital over-current protection, which helps manage the high switching current of several lights.
It is a compact waterproof box for bilge and wet locations, recommended when using two or more underwater lights. It can be used with a helm-mounted switch or, with a compatible Shadow-Caster controller, with no switch. Supplied with mounting hardware.
- Channels: 4, up to 10 A per channel
- Supply: 12 or 24 V systems
- Protection: individual digital over-current per channel
- Status: green/red LED per channel; blue backlight
- Terminals: 5/16-18 in power lugs
- Rating: IP67 wash-down enclosure
