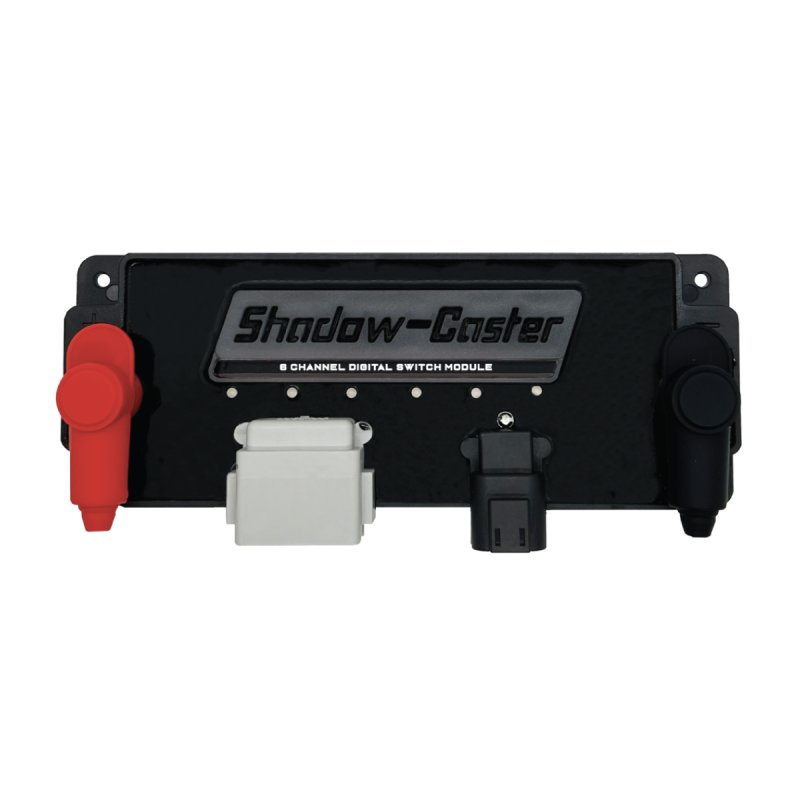

Shadow-Caster Power Distribution 6 Channel Digital Switch Module
Item: SCM-PWR6
MPN: SCM-PWR6
Power Distribution 6 Channel Digital Switch Module
login to saveProduct Description
The Shadow-Caster SCM-PWR6 is a 6 channel digital switch module that allows any standard light to be controlled through the Shadow-Caster Light Commander MFD interface and phone app. Plug the module into the Shadow-NET system and the switch support appears on screen.
Each channel handles up to 10 A with digital fault protection, and there is a manual switch input to override the interface. It is supplied with pre-wired mating connectors and mounting hardware.
- Channels: 6 independent digital switches, 10 A each
- Supply: 12 / 24 V
- Protection: digital over-current fault protection
- Connections: IP67 Deutsch, 5/16 in power lugs with protection boots
- Manual switch override; green/red status LEDs
