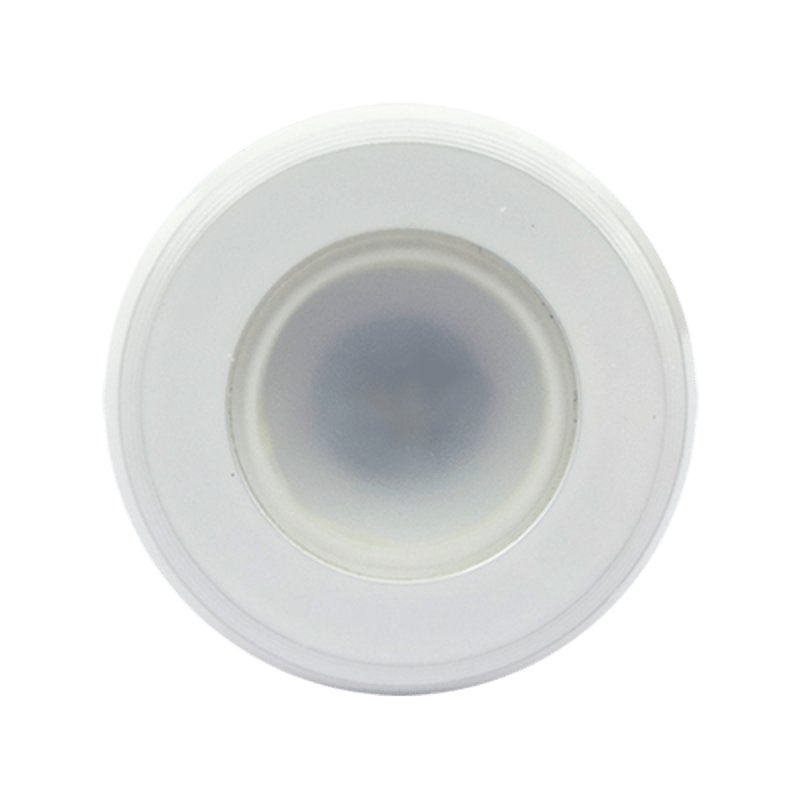

Shadow-Caster SCM-DL Down Lights

Product Description

MARINE LED DOWN LIGHT
SCM-DL

At 2” overall diameter, its wide angle spread of light makes this perfect for lighting T-Tops, cabins, towers and more. Easily control the brightness and color from a standard switch.

The SCM-DL series is available in 4 lighting color output options: single color white; 2 color (blue and white); 3 color (white, blue and red) as well as a full color version. Choose from two color finishes – white or black.

KEY FEATURES

• Soft start technology ramps the brightness up gently over 2 seconds.
• Power toggle feature to set brightness and change color
• True white LED for best color performance
• 120° viewing angle
• High ef?ciency switch mode power supply
• Waterproof low-pro?le aluminum housing
• 3-Year Warranty

COLORS AVAILABLE / PART NUMBER

Full Color – 12 color lights (white or black housing)
SCM-DL-CC-WH
SCM-DL-CC-BK

White, Blue & Red – 3 color lights
SCM-DL-WBR-WH (white housing)
SCM-DL-WBR-BK (black housing)

Blue/White – 2 color lights (white housing)
SCM-DL-BW-WH

Great White – 1 color light
SCM-DL-GW-WH (white housing)
SCM-DL-GW-BK (black housing)

SPECIFICATIONS

• 300 lumen output
• 120° beam angle
• 3 watt power draw
• 10-30 volts input
• 250mA at 12 volts, 125mA at 24 volts
• 6200 Kelvin cool white color temperature
• 2″ (51mm) OD, 0.175″ (4mm) mounting height
• 1.25″ mounting hole
• Durable glass lens
• IP67 waterproof design
• Color change version includes Shadow-NET® interface for controlling color (Part# SCM-DL-CC-WH/SCM-DL-CC-BK)
