South Pacific VA 1000 Series Vertical Windlass Kit

Product Description

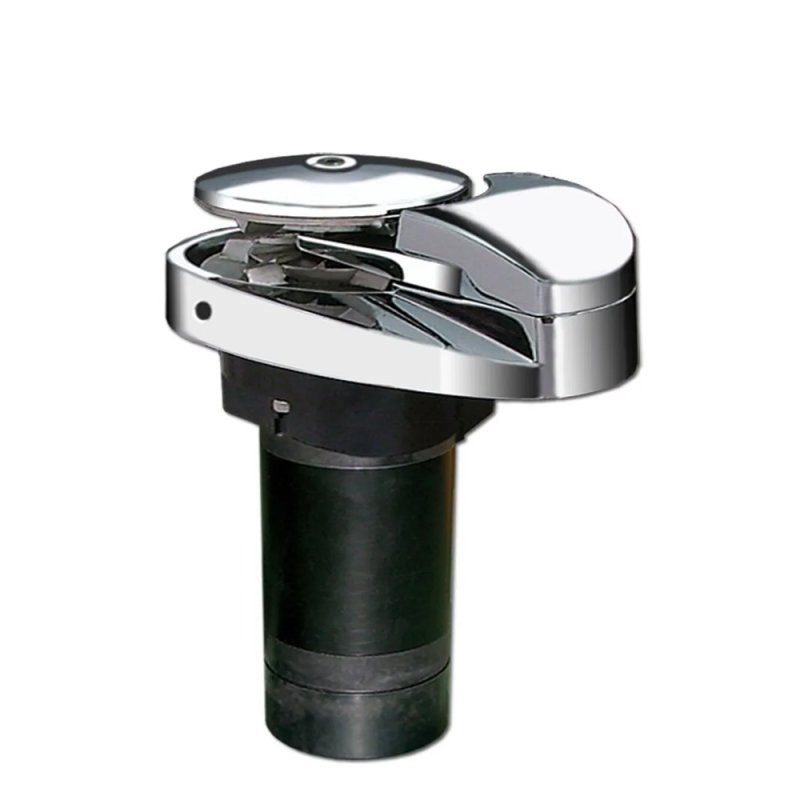

Vertical Windlass Kits with Aluminium Base - VA 1000 Series
The VA Series of one piece vertical windlasses VA1000 is supplied in two models with an 8mm gypsy.
The VA series are made of marine grade aluminium alloy with a powder coated finish to ensure corrosion resistance. The metal gearbox, heavy duty DC motor and base have been designed in one providing a robust unit and enabling easier installation. The one piece vertical unit also eliminates the need for additional gears.
Windlass Kit

1. Windlass VA Series
2. Direct Control Switch SW-200 (no solenoid required)
3. Circuit Breaker CB-001-30
4. Fixing Bolts
5. Manual & Template

Features:

• Stainless steel gypsy takes both rope and chain
• Efficient spur gears, low current draw, high output power
• A torque limiter to deliver smoother operation and greater reliability.
• Efficient heavy duty DC motor produces less heat
• Manual retrieval capable with a handle bar included
• Compact one-piece unit for easy installation

Specifications

• Power:1000W
• Operating Voltage : 12V DC only
• Max. Working Load : 450kg
• Typical Working Load : 85kg
• Retrieval Speed : 18m/min
• Pay-Out Speed : 22m/min
• Current Draw (Typical) : 32 A
• Gear Type : spur gear
• Weight : 6.5kg / 7kg
• Dimension above deck: 195mm x 130mm x 140mm
• Gypsy: 8mm chain which suits rope of 12/14mm.
• Suit Deck Thickness : 3mm~60mm
