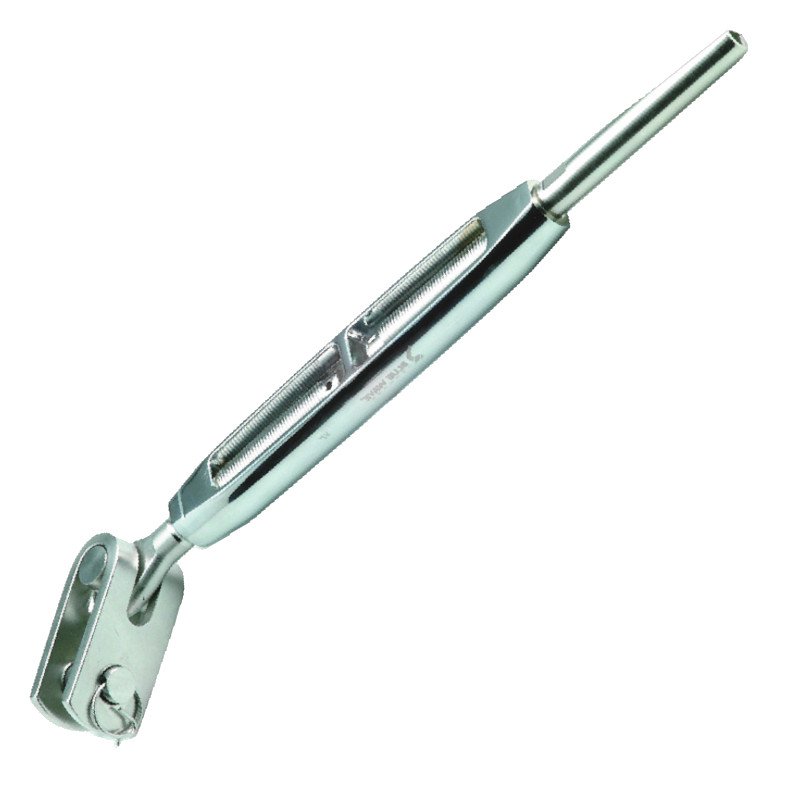

Toggle Fork/Swage Chrome Bronze Rigging Screw

Blue Wave Toggle Fork/Swage Chrome Bronze Rigging Screw

Item: BW-330306-A

MPN: BW-330306-A

Write the first review

Choose option:
from £42.00
RRP From £42.34


Product Description

Toggle Fork/Swage Rigging Screw Chromed Bronze

Fitting a swage terminal requires the correct roll swaging machinery to ensure the correct and safe loadings are applied when the job is complete. Roll swaging is a forging process where the wire is inserted in to the terminal, and the two are compressed through a set of precision dies and a hydraulic press.

Swage terminals are available individually or we can manufacture new or replacement standing and running rigging to your specifications.

Call us to discuss your requirements

Terminal Specification:

  • 4.0mm wire x 5/16" thread x 8.0mm pin dia - Closed 228mm x Extended 304mm
  • 5.0mm wire x 5/16 thread x 8.0mm pin dia - Closed 234mm x Extended 310mm
  • 6.0mm wire x 3/8 thread x 9.5mm pin dia - Closed 280mm x Extended 364mm
  • 7.0mm wire x 7/16" thread x 11.0mm pin dia - Closed 318mm x Extended 408mm
  • 8.0mm wire x 1/2" thread x 12.7mm pin dia - Closed 342mm x Extended 448mm
