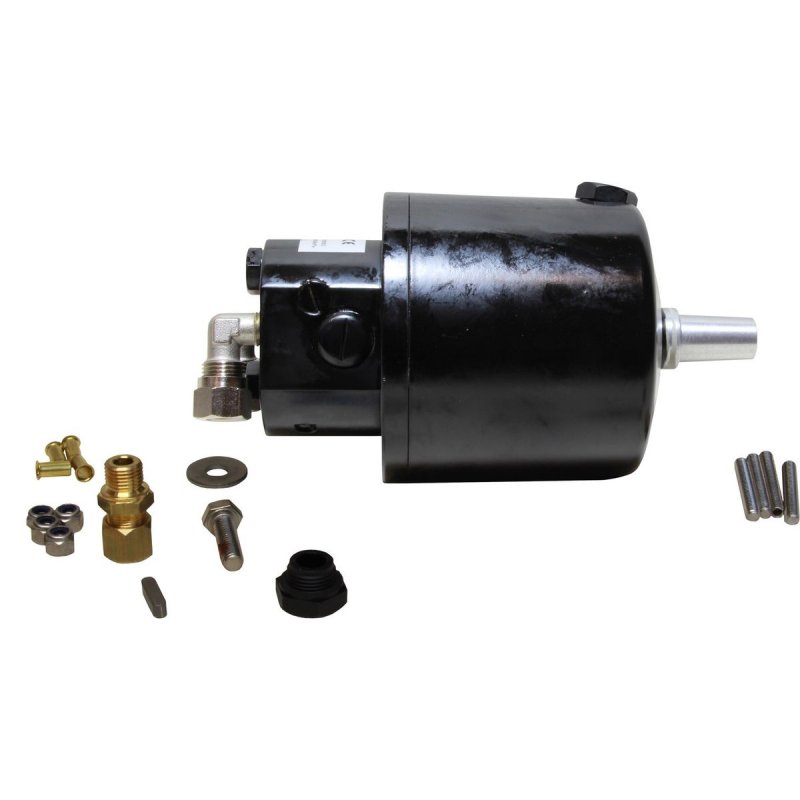

Vetus HTP3010RB Hydraulic Steering Helm Pump (Valves / 10mm Fittings)
login to saveProduct Description
The Vetus HTP3010RB black hydraulic steering pump is part of the new compact series of hydraulic steering pumps. The helm pump is suitable for use with Vetus cylinders MTC52 - 125.
The hydraulic steering helm pump has a four bolt rear face fixing and industry standard 3/4" taper shaft which can be mounted and operated in any angle from horizontal to vertical.
The HTP3010RB Vetus hydraulic steering helm pump features built in non-return and pressure relief valves.
The Vetus HTP3010RB helm pump is supplied as standard with:
- - 10mm compression fittings for the pressure line with a balance pipe.
- - Fixing studs, nuts and washers.
- - One vented and un-vented filler plug.
- - 5 Pistons
Note: You may require adaptor flange HTPF (38mm recess) or HTPF2 (78mm recess) to complete your installation. These are available to order separately.
Capacity Description 30cc
Brand Vetus
Shaft Size 3/4" Taper
Connections Description Fittings to suit 10mm OD Pipe
Displacement Fixed
Intergral Check Valves Yes
Model HTP3010RB
Recommended Tubing Nylon steering hose 6mm ID / 10mm OD (V-HHOSE6015), Nylon steering 8mm ID / 12mm OD (V-HHOSE8015), Steering hose 8mm ID / 14.2mm OD (603508), Soft annealed red copper / steel tubing 8mm ID / 10mm OD.
Collect in Store
This item is available for collection.
