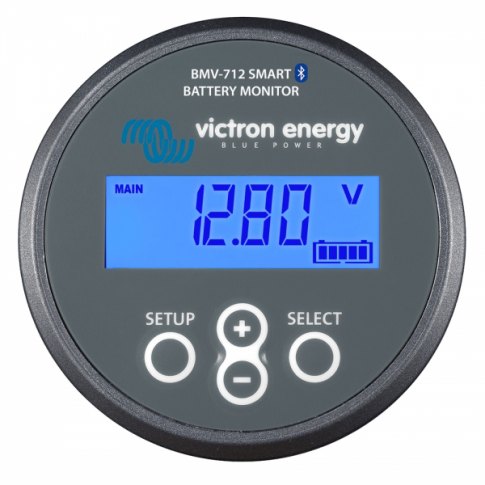

Victron Victron 500A 12V/24V/48V Smart Battery Monitor with Inbuilt Bluetooth BMV-712

Product Description

Photonic Universe is an official distributor of products from Victron Energy - theglobally renowned manufacturer of high qualityhybrid power electronics. Victron Energy solar charge controllers have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

This Victron 500A BMV series smart battery monitor uses a high-precision battery shunt designed to expertly measurevital charging and performancedata foryour batteries. This smart model features additional advanced functions such as Bluetooth communication ability, a secondaryinput foroptional monitoring of an auxiliary battery bank, and an extremely low current draw from the battery bank (0.7Ah per month for a 12V system).Statistics such as battery voltage, charge / discharge current as energy flows in to and out of the battery, Amp Hours consumed, state of charge and time-to-goare displayed on the LCD monitor for convenient viewing. The inbuilt Bluetooth enables remote system monitoring (with real-time data displayed) and programming of settings via any Bluetooth-enabled mobile device, such as a smartphone or tablet.

Battery data

The smart battery shuntmeasuresthe vital parameters relating to the battery condition and the energy it receives/ provides,and transmits this informationtothe LCDmonitor, where it can be viewed by the user (and where some settings can be amended if necessary). This information includes:



Battery voltage: Displayed for the main battery / battery bank, and also for an optional auxiliary battery which can be connected via the secondary input.


Battery midpoint voltage monitoring:For battery banks constructed of several individual batteries, the smart monitor is able to maintain balance by taking the voltage measurements from the midpoint within the bank, and if the voltage deviates from this point of balance, an alarm will be generated. For such battery banks, the voltage value is also displayed for the battery bank as a whole, and additionally, for the 'top section' and 'bottom section' (i.e. 1st half and 2nd half) of the battery bank.


Battery state of charge: Indicated as a percentage value from 0-100%.


Battery charging / discharging current and power:The current(A) and power (W)flowing out of the battery (load consumption)are displayed as negative values,while the current and powerflowing into the batteryaredisplayed as positive values.


Battery temperature: The smart monitor can be connected to an optional Victron battery temperature sensor (sold separately. This temperature measurement can be used to adjust available battery capacity as the temperature varies. An alarm will be activated when batterytemperature falls outside of the safe range.


Amp hours consumed: For example, if 12A is drawn from a fully charged battery during a period of 3 hours, the monitor will show -36.0Ah consumed by the battery.


Time-to-go:Themonitoris able toestimate theapproximate length of time that the battery will continue to support the current load, beforethe batteryrequires re-charging.



An in-depthdatalog also records historical datato enable the user to evaluate usage patterns and determine overall battery health. This includes values such asthe highest/ lowest recorded voltages (for the main battery and auxiliary battery), deepest recorded discharge,time since lastfull discharge, cumulative Amp hours drawn, time since last full charge, total energy charged/discharged and many more.

Customisation

This battery monitor is supplied with a 500A 50mV shunt, although if required, this can be replaced with a different sized shunt. The monitor is compatible with shunts up to9999A and/or 75mV.

The user can set high/low thresholds for battery voltage (either battery), battery state of charge (main battery) or the battery temperature (additional sensor required). If any of the above parametera fall outside of this specified range, the battery shuntwill transmit a signal toa relay which activates an audible alarm. When the alarm is triggered, the LCD monitor willsound, the backlight will flash and an alarm symbol will appear on the display.This smart battery monitor has also been designed to minimise power consumption and therefore features a bistable alarm relay, meaning that the current draw remains low regardless of the position of the relay.

Furthercustomisable features includethe option to specify which parameters are displayed on the monitor, adjustmentof thescrolling speed of the values on screen, the option to 'lock' settings in place, and a fully adjustable backlight on the LCD display.

Advanced communication

This smart battery monitor features inbuilt Bluetooth, enabling the user to wirelessly connect their mobile device to the monitor. Then, using the VictronConnect Appon a smartphone or tablet, you will unlocknumerous possibilities foradvanced programming and remote monitoring of your battery system. A wide range ofadditional features are made available, including real-time data transmission, as well as the option to amend battery storage information, program alarms and relays, amend charging parameters, customise the appearance and quantity of data displayed on the monitorand set up or join an existing VE.Smart network. Alternatively, the VE Direct USB cable can be used to establish a connection to a non-Bluetooth-enabled PC/laptop.

The VictronConnect app is compatible withmost mobile devices and computers, including Android and iOS smartphones, tablets, iPads, MacBooks, Windows PCs/laptops.

Compatibility

This battery monitor is suitable for use with any12V, 24V or 48VLead Acid / Gel / AGM / Lithium battery or battery bank. The maximum admissible nominalcurrentthrough this deviceusing the supplied shunt is 500A.

Additional items

The following items are supplied with this product: a 10m cable to connect the LCD monitor to the battery shunt, 2 x 1m positive supply cables with a fuseto connect the battery shunt toup totwo battery banks, a square frame for the LCD monitor and 4 x mounting screws.
