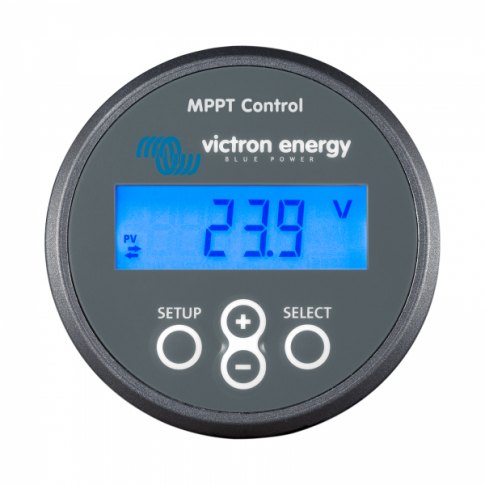

Victron Victron VE.Direct MPPT Control panel with LCD Display for BlueSolar / Smartsolar MPPT solar
Item: VE-CONTROL
MPN: VE-CONTROL
Remote LCD control panel for Victron BlueSolar MPPT solar charge controllers and SmartSolar MPPT controllers with a VE.Direct port.
login to saveProduct Description
Photonic Universe is an official distributor of products from Victron Energy - theglobally renowned manufacturer of high qualityhybrid power charging solutions. Victron Energy solar charge controllers and accessorieshave a longstanding reputation for their outstanding reliability, innovative design and superior build quality.
This Victron VE.Direct MPPT control panel plugs into your VictronBlueSolar or SmartSolar MPPT solar charge controller (VE.Direct models only) to allow the user to remotely monitor and program charging parameters. Using the VictronMPPT control panelalso unlocks exclusive access tolive status info, daily/ monthly datalogs and advanced options for system personalisation.
Compatible Victron products:
This MPPT control panel is designed for use with Victron MPPT charge controllers with a VE.Direct port. For example, either:
Acontroller from theBlueSolar range (such as VBSM75-15, VBSM100-30, VBSM100-50, VBSM150-35, VBSM150-45, VBSM150-60or VBSM150-70)
Certain models from the SmartSolar range (such as VSSM75-15, VSSM100-20, VSSM100-30, VSSM150-35, VSSM150-45, VSSM150-60, VSSM150-85 or VSSM150-100)
Please note this control panel is not compatible with the discontinued BlueSolar MPPT 70/15, or with any Victron MPPT controller with a VE.Can port.
Advanced programming and monitoring:
Connectingthis MPPT control panelto your Victron solar charge controller unlocks numerous possibilities foradvanced programming and remote monitoring of your MPPT solar system. The wide range ofadditional features made available include:
- Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current, load status and current, and charging stage information.
-30-day data logs: System activity is available toview, either as daily values or as cumulative values for the past 30 days. Daily data displayed includes: energy yield, maximum recorded power and voltage, time spent in each charging stage, maximum battery current, minimum and maximum recorded battery voltages and daily error records. 30 day data includes: total cumulative energy yield, maximum recorded solar panel voltage, minimum and maximum recorded battery voltage, and recent errors.
- User-defined battery charging algorithm: Option to disable presetvalues in favour ofpersonalised charging parameters, including user-definedabsorption voltage, absorption time, float voltage, equalisation voltage and temperature compensation settings.
- Load configuration: For BlueSolar or SmartSolar MPPT controllers with load terminals (such as VBSM75-15or VSSM100-20) there is the option to choose from one of the pre-set load management programs or to create a user-defined load program.
Additional considerations:
As default, Victron MPPT control panels are not supplied with the VE.Directconnection cable required for connection to the controller. The VE.Directcable is available in 1.8m, 3m or 5m lengths, and must be purchased separately.
This control panel is designed to be flush mounted (a recess of approximately 54mm in diameter must be cut into the mounting wall / surface in order to accommodate the display).If surface mounting is preferred, an optional Victron wall mounting enclosure is available , which we are able to source upon request - please contact usfor further details.
Click on the Details and Specifications tab for more information about this product.
Details
Specifications:
Compatible with Victron BlueSolar and SmartSolar MPPT solar charge controllers with a VE.Direct port - except the discontinued BlueSolar MPPT 70/15.
(e.g. Compatible with BlueSolar modelsVBSM75-15, VBSM100-30, VBSM100-50, VBSM150-35, VBSM150-45, VBSM150-60or VBSM150-70& SmartSolar models VSSM75-15, VSSM100-20, VSSM100-30, VSSM150-35, VSSM150-45, VSSM150-60, VSSM150-85 or VSSM150-100)
Supply voltage range: 5V
Current draw (without backlight): < 4mA
Operating temperature range: -20°C to +50°C
Diameter of front round face: 63 mm
Dimensions of entireunit: 69 x 69 x 31 mm
Hole required for flush mounting: approx. 54mm diameter (31mm depth)
Weight: 61g
VE.Direct cable not included. Available in 1.8m, 3m or 5m lengths.
This product is covered by a5 year warranty. For more information please refer to our Terms and Conditions.
Installation
This product comes with a detailed user manual which explains wiring and operations (see Documents tab).
Please note: the VE.Directconnection cable for use between the MPPT control panel and BlueSolar / SmartSolarcontroller is not included with Victron MPPT control panels. The VE.Directcable is available in 1.8m, 3mor 5m lengths and must be purchased separately.
This control panel is designed to be flush mounted (a recess of approximately 54mm in diameter must be cut into the mounting wall / surface in order to accommodate the display).If surface mounting is preferred, an optional Victron wall mounting enclosure is available , which we are able to source upon request - please contact us for further details.
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
