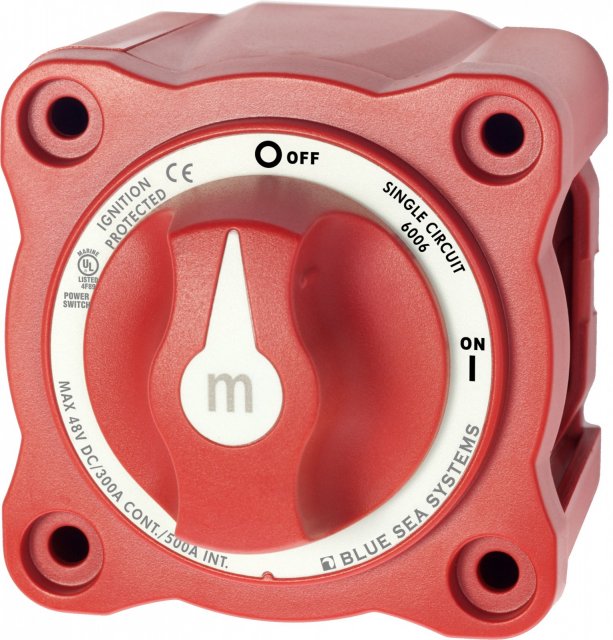

Blue Sea Systems Mini Battery Switch (Knob Version)

Item: 7-1020

MPN: 6006

FREE UK Mainland Delivery on orders over £125*

Choose :
£34.95 inc VAT
RRP £40.92
You may also need:
Quantity:

Blue Sea M-SERIES BATTERY SWITCHES

300 Ampere continuous rating for outboards and small gasoline or diesel engines.

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3⁄8" (M10) ring terminals
  • One-piece terminal stud design never loosens over time
  • 7⁄8" (22.22mm) stud length accepts multiple cable terminals
  • Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction
  • Case design allows surface, rear, or front panel mounting options

Regulatory

  • CE marked, ISO 8846
  • UL Listed - UL 1107 electric power switches
  • Meets ABYC requirements
  • Meets UL1500 and SAE J1171 external ignition protection requirements
  • IP66 protects against powerful water jets
Specifications
Cranking Rating: 10 sec. 1500 AMPS
Intermittent Rating: 5 min. 500 AMPS
Continuous Rating: 300 AMPS
Voltage Maximum Operating: 48 V
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 120 in-lbs
Mounting Holes: Accept #10 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance 1.12" (28.4mm)
