Hy-Pro Drive PR+ RRV REVERSING MARINE HYDRAULIC PUMP WITH RESERVOIR AND RELIEF VALVES
Item: PR1012RRV

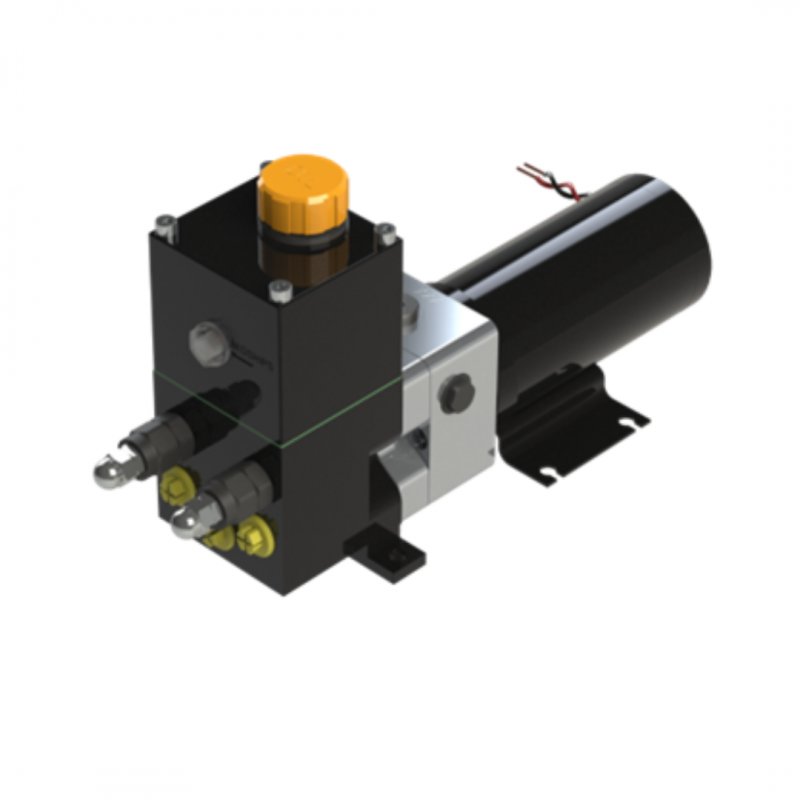

PR+ RRV Reversing DC Hydraulic Power Unit with reservoir and relief valves. Reversing type gear pumps driven by 12V/24V DC permanent magnet motors. Incorporated in the design are pilot operated check valves that prevent the pump being back driven by the manual steering system or rudder load. The motors have an IP67 rating and can be removed from the pump without allowing air into the hydraulic system or fluid to escape. They can be used with both balanced and unbalanced cylinders
login to saveProduct Description
Description
"PR+RRV" reversing type gear pumps are driven by 12V/24V DC permanent magnet motors. Incorporated in the design are pilot operated check valves that prevent the pump being back driven by the manual steering system or rudder load.
The motors have an IP67 rating and can be removed from the pump without allowing air into the hydraulic system or fluid to escape. They can be used with both balanced and unbalanced cylinders. The pumps incorporate relief valves on each service port which allow the maximum pressure to be limited independently.
When used in conjunction with a cylinder of your choice, the PR+ RRV pump can be used for many onboard applications e.g. steering, hatch lifting, bathing platforms etc
Application
Designed specifically for the marine autopilot market they are used by the worlds leading autopilot manufacturers. They can be used with balanced or unbalanced cylinders and are suitable for use in pressurized reservoir systems.
Features
Quiet and smooth operation
Low power consumption.
Zero back drive check valves.
6 flow options
100W motors
50W motor on PR+08
12V/24V DC motor options.
Relief Valve option.
Port position options.
Compact.
Easy installation.
G1/4 (BSP) parallel ports
NPTF and M10 adapter kits available
Service kits available.
Cylinders and hose kits supplied to suit.
Fully compliant to the Recreational Craft Directive
Supplied with EU Declaration of Conformity
Technical data
Voltage 12V/24V DC
Typical amp-hour Typical current
Current 5 bar at 25% duty Intermittent
55 bar max
12V 24V 12V 24V
PR+RRV 05 50W 1.5A 10.1A
PR+RRV 06 25W 0.9A - 9.0A
PR+RRV 08 50W 1.3A - 14.0A
PR+RRV 10 100W 2.2A 1.0A 19.0A 9.0A
PR+RRV 15 100W 2.4A 1.2A 24.0A 11.0A
PR+RRV 20 100W 2.5A 1.3A 25.0A 12.0A
PR+RRV 25 100W 2.7A 1.4A 34.0A 15.5A
Ingress Protection IP67
EMC Protection BS EN 60945:2002 (DC)
Ignition protection BS EN ISO 8846:2017
Ambient operating
Temperature -15 to +55 deg C
Max Pressure 55 bar (intermittent operation)
Reservoir Capacity 107cc at midships
Max heel Angle 60°
Relief Valves Adjustable between 15 and 60 Bar
Adjustment rate per turn 30 bar
Set at 50b unless otherwise stated
Ingress Protection IP67
Reservoir Capacity 107cc at midships
Max heel Angle 60°
Ports A = Cylinder port G1/4 (BSP) Parallel
B = Cylinder port G1/4 (BSP) Parallel
Filler / Breather G1/2 (BSP) Parallel
Rotation Red lead to positive - Pressure to A port
Hoses Suitable for working pressure 55 bar.
Minimum burst pressure 100 bar.
Fluid SO VG10 to VG40 Hydraulic mineral
fluid meeting ISO 6743-4 HV
The following commercial fluids are suitable Fuchs Renolin B15 HV1 and Seastar HA5430
