Hy-Pro Drive PR+ RU REVERSING ELECTRO-HYDRAULIC POWER UNIT WITH RESERVOIR AND SOLENOID UNLOADER
PR+ RU Reversing DC Hydraulic Power Unit with reservoir and clutch. Reversing type gear pumps driven by 12V/24V DC permanent magnet motors. Incorporated in the design are pilot operated check valves that prevent the pump being back driven by the manual steering system or rudder load. The motors have an IP67 rating and can be removed from the pump without allowing air into the hydraulic system or fluid to escape. They can be used with both balanced and unbalanced cylinders.
login to saveProduct Description
Description

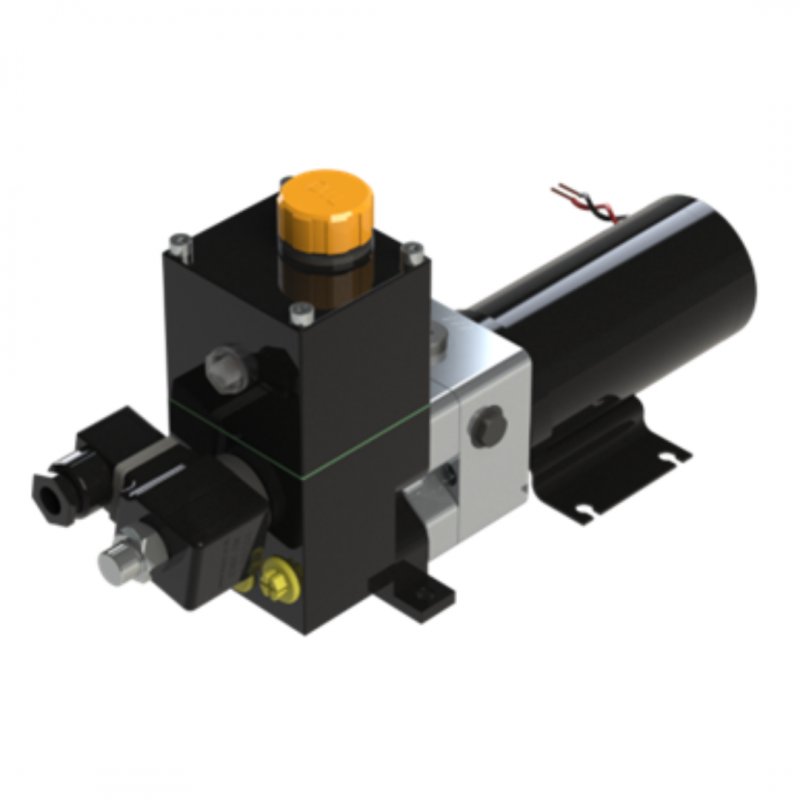

The PR+RU incorporates the proven PR+ reversing pump and motor range but with an integral reservoir and solenoid unloader valve.
Complete with pilot check valves this compact unit can be used where the vessel has a mechanical primary steering and an autopilot stand-alone secondary hydraulic drive is required. With just two hose connections, uniquely the unit can be used with balanced or unbalanced cylinders*. The unloader solenoid coil is switched by the course computer clutch connection to engage and disengage the drive.
By design the very low back drive loads preserve the feel of the helm when steering by hand. The reservoir allows for extreme heel angles without any fluid loss and the IP67 motor and solenoid ensure no water ingress problems.
In the event of primary mechanical steering failure the system can be used as emergency steering with the autopilot.
Manufactured from corrosion resistant marine grade materials the unit can be easily serviced and the motor changed with just two bolts and no fluid loss or air ingress into the system.
With the option of omitting the unloader valve the unit can be used in other hydraulic applications such as hatch, window and bathing platforms with the check valves locking the hydraulic cylinder in place.
*maximum differential volume 50 cc.
Application
When connected to a secondary steering cylinder it forms a compact linear drive.
Features
Quiet and smooth operation
Low power consumption.
Zero back drive check valves.
6 flow options
100W motors
50W motor on PR+08
25W motor on PR+06
12V/24V DC options.
Compact size.
Easy installation.
External oil level indicator
G1/4 (BSP) ports (with NPTF adapter kits available).
Service kits available.
Cylinders and hose kits supplied to suit.
Technical data
Voltage 12V/24V DC
Typical amp-hour Typical current
Current 5 bar at 25% duty Intermittent
55 bar max
12V 24V 12V 24V
PR+05 50W 1.5A 10.1A
PR+06 25W 0.9A - 9.0A
PR+08 50W 1.3A - 14.0A
PR+10 100W 2.2A 1.0A 19.0A 9.0A
PR+15 100W 2.4A 1.2A 24.0A 11.0A
PR+20 100W 2.5A 1.3A 25.0A 12.0A
PR+25 100W 2.7A 1.4A 34.0A 15.5A
Ingress protection IP67
EMC protection BS EN 60945:2002 (DC)
Ignition protection BS EN ISO 8846:2017
Ambient operating
temperature -15 to +55 deg C
Max pressure 55 bar (intermittent operation)
reservoir line 2 bar max
Ports G1/4 (BSPP) Parallel
A = cylinder port
B = cylinder port
R = reservoir port
Orientation Red lead to positive - pressure to A port
Black lead to positive - pressure to B port
Hoses Suitable for working pressure 55 bar.
Minimum burst pressure 100 bar.
Fluid ISO VG10 to VG40 Hydraulic mineral fluid
meeting ISO 6743-4 HV
Weight 3.0 kg
Port adaptor torque 27Nm (20 lb/ft)
