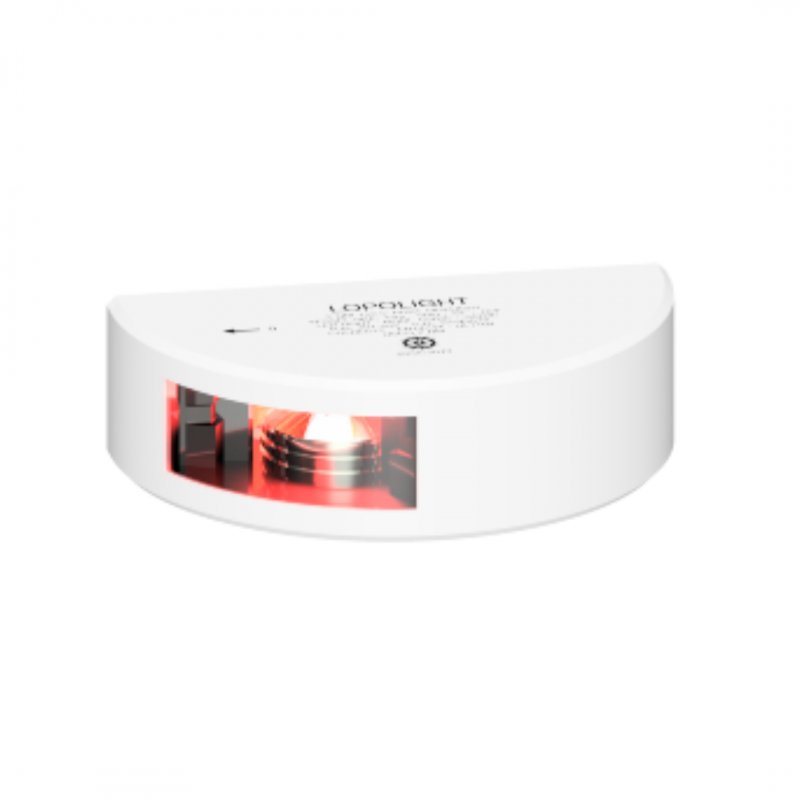

Lopolight 2nm 112,5° Red, Port - Silver, Black or White

Product Description

Number  301-002

Light Color  Red

Dimensions metric  92,5 x 28 x 49,7

Certification  This Navigation Light is certified by DNV, the Declaration of conformity and the certificates can be found on www.lopolight.com under Support

Intensity  >5.4cd

Dimensions imperial  3.6" x 1.1" x 1.95"

Approved to  COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR

Visibility  2nm

Included In Package

1 Navigation light,precabled with X meter shielded marine grade cable,2 Mounting screws (M6 * 8 mm),Installation guide

Operating temperature  -25°C to 55°C

Mounting  Vertical

Materials Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane

Operating Voltage  10-32VDC

IP rating  IP68

Power draw (W)  1,2

UPC Code  879343009090

Connection  cable

Current consumption (mA @ 12VDC)  90

Current consumption (mA @ 24VDC)  50

Vessel size  12-20M,20-50M

Min. feed wire gauge  0.5mm2 AWG22

Weight (Kg)  0.38 Kg

Weight (Oz)  13.40 Oz
