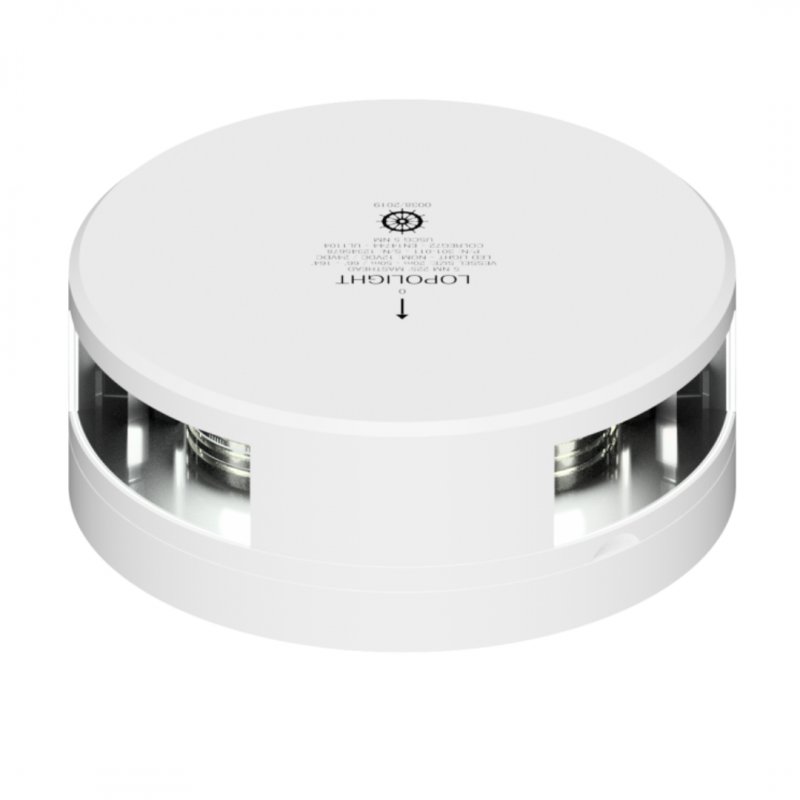

Lopolight 5nm 225deg White, Masthead

Product Description

Lopolight 301-011 - Navigation Light 5NM 225° White, Masthead, Silver Anodized

This masthead navigation light provides powerful white illumination with a 225° visibility arc and a range of 5 nautical miles. It features a vertical mounting system with a 0.75 meter shielded marine-grade cable and is made of silver anodized aluminum for durability. Designed for vessels between 20 and 50 meters, it delivers intensity greater than 52cd while maintaining a compact and lightweight form.

• Article number: 186811A
• Supplier article code: 301-011
• Light Color: White
• Dimensions (metric): 74.55mm x 28mm x 73.16mm
• Dimensions (imperial): 2.9" x 1.1" x 2.88"
• Certification: Certified by DNV
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Intensity: >52cd
• Visibility: 5 nautical miles
• Included in Package: 1 Navigation light, precabled with 0.75 meter shielded marine cable, 2 mounting screws (M6 x 8mm), installation guide
• Operating temperature: -25°C to 55°C
• Mounting: Vertical
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• IP rating: IP68
• Power draw: 4.1 W
• Connection: 0.7m cable
• Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
• Vessel size: 20-50M
• Minimum feed wire gauge: 0.5mm² AWG22
• Weight: 0.42 Kg (14.81 Oz)
• EAN: 5704438009486
• UPC Code: 879343009489

Lopolight 301-011-B - Navigation Light 5NM 225° White, Masthead, Black Anodized

This masthead navigation light is vertically mounted and comes precabled with a 0.75-meter shielded marine-grade cable. It is built with black anodized aluminum and delivers clear white light visible up to 5 nautical miles, suitable for vessels between 20 and 50 meters.

• Article number: 186811AZ
• Light color: White
• Dimensions: 74.55mm x 28mm x 73.16mm (2.9" x 1.1" x 2.88")
• Certification: Certified by DNV
• Intensity: >52 cd
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Visibility range: 5 nautical miles
• Included in package: 1 navigation light precabled with 0.75m cable, 2 mounting screws (M6 x 8 mm), installation guide
• Operating temperature: -25°C to 55°C
• Mounting: Vertical
• Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Operating voltage: 10-32 VDC
• IP rating: IP68
• Power draw: 4.1 W
• Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
• Vessel size suitability: 20-50 meters
• Minimum feed wire gauge: 0.5mm² (AWG22)
• Weight: 0.43 kg (15.17 oz)
• Connection: 0.75m cable
• EAN: 5704438009479
• UPC Code: 879343009472

Lopolight 301-011KL - White Masthead Light 225° 5NM Horizontal Mounting Anodized Aluminum

The Lopolight 301-011KL is a compact white masthead navigation light engineered for horizontal mounting. Manufactured in Denmark and individually tested, this anodized aluminum light delivers full brightness across a wide voltage range with ultra-low power consumption and exceptional durability.

Key Features

• White masthead light with 225° coverage
• Horizontal mounting configuration
• Anodized aluminum housing
• LED technology with low power consumption
• IP68+ vacuum rated and vibration resistant

Lopolight 301-011KL-B-RPM - Navigation Light 5NM 225° Masthead, Dimmable, Black

• Dimmable, monitored, and controllable
• 2-lead connection for power and control
• Operating voltage: 24VDC
• Product Number: 301-011KL-B-RPM
• Light color: White
• Dimensions (metric): Ø92,5mm x 74,5mm
• Dimensions (imperial): Ø3.6" x 2.9"
• Certification: DNV approved
• Intensity: >52cd
• Standards: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Visibility range: 5nm
• Included: 1 Navigation light, 2 mounting screws (M6 * 8 mm), installation guide
• Operating temperature: -25°C to 55°C
• Mounting type: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• EAN: 5704438014701
• IP rating: IP68
• Power draw: 4,1 W
• UPC Code: 879343014704
• Connection: Plug connector
• Current consumption at 12VDC: 320 mA
• Current consumption at 24VDC: 170 mA
• Special attributes: Dimmable (NAVY/SAR only)
• Recommended vessel size: 20-50M
• Minimum feed wire gauge: 0.5mm² AWG22
• Weight: 0.99 Kg (34.92 Oz)

Lopolight 301-011KL-B-RPM - Navigation Light 5NM 225° Masthead, Dimmable, Black

• Dimmable, monitored, and controllable
• 2-lead connection for power and control
• Operating voltage: 24VDC
• Product Number: 301-011KL-B-RPM
• Light color: White
• Dimensions (metric): Ø92,5mm x 74,5mm
• Dimensions (imperial): Ø3.6" x 2.9"
• Certification: DNV approved
• Intensity: >52cd
• Standards: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Visibility range: 5nm
• Included: 1 Navigation light, 2 mounting screws (M6 * 8 mm), installation guide
• Operating temperature: -25°C to 55°C
• Mounting type: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• EAN: 5704438014701
• IP rating: IP68
• Power draw: 4,1 W
• UPC Code: 879343014704
• Connection: Plug connector
• Current consumption at 12VDC: 320 mA
• Current consumption at 24VDC: 170 mA
• Special attributes: Dimmable (NAVY/SAR only)
• Recommended vessel size: 20-50M
• Minimum feed wire gauge: 0.5mm² AWG22
• Weight: 0.99 Kg (34.92 Oz)

5nm 225° White, masthead, black anodized

• P/N: 301-011KL-B-UL
• 5nm masthead, black anodized
• Horizontally mounted on 400-036, Ultra-low base
• With 0.75m cable.

5nm 225° White, masthead, hor PRO mnt

• P/N: 301-011KL-PRO
• 5nm masthead, hor PRO mnt
• Horizontally mounted on POM base (IP68)
• Cable direction side
• incl. HDPE base plate
• Quality cable glands
• 7-13mm (9/32"- 1/2") cable diameter

Lopolight 301-011KL-PRO-EX - Navigation Light 5NM 225° Masthead, Black Ex Zone 1&2

A robust navigation light designed for vessels operating in hazardous areas, with strong certifications and reliable performance for professional use.

• Certified for use in ATEX Zone 1 & 2
• Horizontally mounted on 400-037-B alu base (IP68)
• Cable direction side, includes HDPE base plate
• No cable glands or ground strap included
• Number: 301-011KL-PRO-EX
• Light Color: White
• Dimensions metric: Ø92,5mm x 103,5mm
• Dimensions imperial: Ø3.6" x 4"
• Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
• Visibility: 5nm
• Included in package: 1 navigation light, installation guide
• Operating temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• EAN: 5704438040502
• IP rating: IP68
• Power draw (W): 4
• UPC Code: 879343040635
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 320
• Current consumption (mA @ 24VDC): 170
• Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
• Vessel size: 20-50M
• Min. feed wire gauge: 0.5mm2 AWG22
• Weight: 1 Kg / 35.27 Oz

Lopolight 301-011KL-PRO-I - Navigation Light 5NM 225° White, Masthead, Black Anodized Ice-Class

A durable masthead navigation light with integrated de-icing capability, designed for harsh ice-class environments and extreme temperatures.

• Built-in de-icing function
• Horizontally mounted on 400-037 POM base (IP68)
• Cable direction side, includes HDPE base plate
• Quality cable glands 7-13mm (9/32"-1/2") cable diameter
• Number: 301-011KL-PRO-I
• Light Color: White
• Dimensions metric: Ø92,5mm x 96,5mm
• Dimensions imperial: Ø3.6" x 3.8"
• Certification: DNV
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Visibility: 5nm
• Included in package: 1 navigation light, 2 mounting screws (M6 * 8 mm), installation guide
• Operating temperature: -60°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• EAN: 5704438038134
• IP rating: IP68
• Power draw (W): 4,1
• UPC Code: 879343038267
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 320
• Current consumption (mA @ 24VDC): 170
• Special Attributes: Ice-class Defroster included
• Vessel size: 20-50M
• Weight: 1.02 Kg / 35.98 Oz

Lopolight 301-011KL-PRO-I-EX - Navigation Light 5NM 225° Masthead, Black Ex Zone 1&2 Ice-Class

An advanced navigation light combining ATEX Zone 1&2 certification with built-in de-icing functionality, ensuring safe operation in icy and explosive-prone environments.

• Certified for use in ATEX Zone 1 & 2
• Built-in de-icing function
• Horizontally mounted on 400-037 EX/MIL alu base
• Cable direction side, includes HDPE base plate
• No cable glands or ground strap included
• Number: 301-011KL-PRO-I-EX
• Light Color: White
• Dimensions metric: Ø92,5mm x 103,5mm
• Dimensions imperial: Ø3.6" x 4"
• Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
• Visibility: 5nm
• Included in package: 1 navigation light, installation guide
• Operating temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 10-32VDC
• EAN: 5704438040618
• IP rating: IP68
• Power draw (W): 4
• UPC Code: 879343040741
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 320
• Current consumption (mA @ 24VDC): 170
• Special Attributes: Ice-class Defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
• Vessel size: 20-50M
• Min. feed wire gauge: 0.5mm2 AWG22
• Weight: 1 Kg / 35.27 Oz

Lopolight 301-011KLST - Navigation Light 5NM 225° White, Double Masthead, Silver Anodized

This double masthead navigation light features the same robust design and 5 nautical mile visibility with a wider height, horizontally mounted on a CSCD (400-034) base. It is constructed with silver anodized aluminum and designed for vessels sized 20 to 50 meters.

• Article number: 186811AKLST
• Light color: White
• Dimensions: Ø92.5mm x 96.5mm (Ø3.6" x 3.8")
• Certification: Certified by DNV
• Intensity: >52 cd
• Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
• Visibility range: 5 nautical miles
• Operating temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Operating voltage: 10-32 VDC
• IP rating: IP68
• Power draw: 4.1 W
• Current consumption: 320 mA @ 12VDC, 170 mA @ 24VDC
• Vessel size suitability: 20-50 meters
• Minimum feed wire gauge: 0.5mm² (AWG22)
• Weight: 1.29 kg (45.50 oz)
• Connection: Plug connector
• EAN: 5704438013094
• UPC Code: 879343013097
