Nasa Clipper Fluxgate Compass System

Item: CLIPPER COMPASS

MPN: 523-CLIP-CMPS

FREE UK Mainland Delivery on orders over £125*

£185.00 inc VAT
RRP £215.24
You may also need:
Nasa Clipper Depth System
Nasa Clipper Depth System
£135.00 inc VAT
Quantity:

The outstanding Nasa Clipper range of instruments incorporate technically advanced electronics in an industry standard 110mm square case. Reliable and economical, these have proved to be our best selling range of boat instruments over many years.

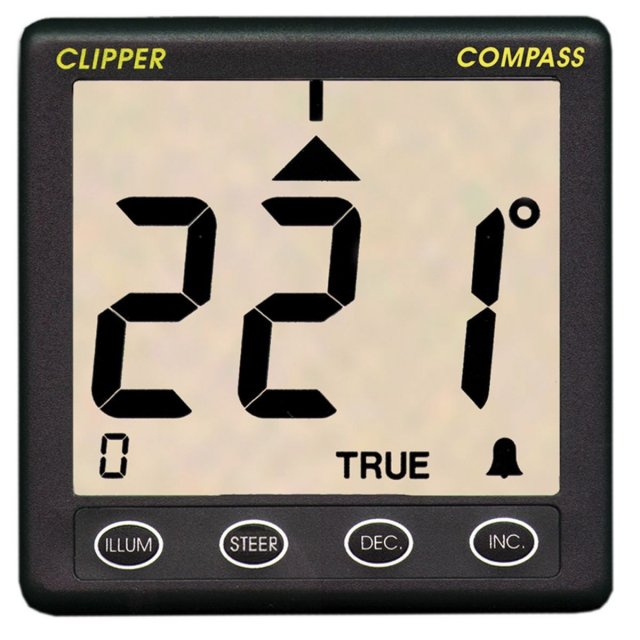

The Clipper Compass is a fully electronic compass with remote fluxgate sensor. The large clear display has 7 levels of illumination and gives True or magnetic heading. The sensor which is gimballed for plus/minus 45 degrees of pitch and roll, is mounted in a position where stray magnetic fields are at a minimum. An electronic auto calibration then cancels out small errors.

Steer to course function: When the steering function is selected a series of chevrons accumulate showing the magnitude and direction of the steering error. To stay on course simply turn the wheel in the direction of the chevrons until they are extinguished. The steering sensitivity can be preset by the user. An off course alarm provides a safety feature when not at the helm. If the heading deviates by more than a preset amount then the alarm will sound.

  • Supply voltage Nominal 12v DC
  • Consumption 40mA + 10 mA max for full level display illumination
  • Fluxgate accuracy +/- 1 degree
  • Adjustable Damping
  • 1 degree display resolution
  • Display case size 110 x 110mm
  • Depth behind panel 30mm
  • Fluxgate Dimensions 72mm x 68mm x 40mm
  • Fluxgate Weight 475 grams including 10 metre cable
  • sensor supplied with 10 metres of cable
