Photonic Universe Pair of 2-pin IP67 waterproof locking connectors 300V 20A
Item: J2CONNECT
MPN: J2CONNECT

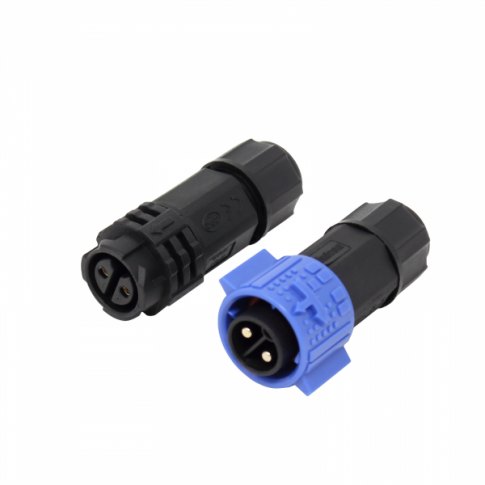

Pair of 2-pin 300V 20A IP67 waterproof locking connectors / plugs suitable for solar panels, extension cables or photovoltaic systems dual-core cables - ideal for outdoor applications
login to saveProduct Description
These versatile 2-pin connectors have an IP67 protection rating and a UL94-V0 flame-resistant rating, making them highly durable and reliable in protecting the internal electric connections/wires in harsh environment applications, such as outdoor lighting systems, marine equipment, PV systems and outdoor security cameras/CCTV.
They feature an easy-to-use interlocking mechanism which does not require any special tools; this keeps the connection secure from accidentally unplugging, whilst allowing for fast connection/disconnection whenever necessary.
These connectors are rated for voltages and currents of up to 300V/20A. They are only suitable for dual-core round cables and can only accept cables with a 1.0-4.0mm2 gauge.
Please note: the internal ends of the connector pins are designed for soldering to the cable for the best performance.
Details
Specifications:
Number of contacts/pins: 2
Withstanding voltage: 1500V
Protection level: IP67
Flame-resistant rating: UL94-V0
Cable gauge: 1.0 - 4.0mm2
Cable outer diameter: Φ4.5 - Φ11
Operating temperature: -40°C - 105°C
Installation
If you need help with installation or have any technical questions we can provide FREEsupport - please contact us by email or phone (see Contact Us page for more information).
Collect in Store
This item is available for collection.
