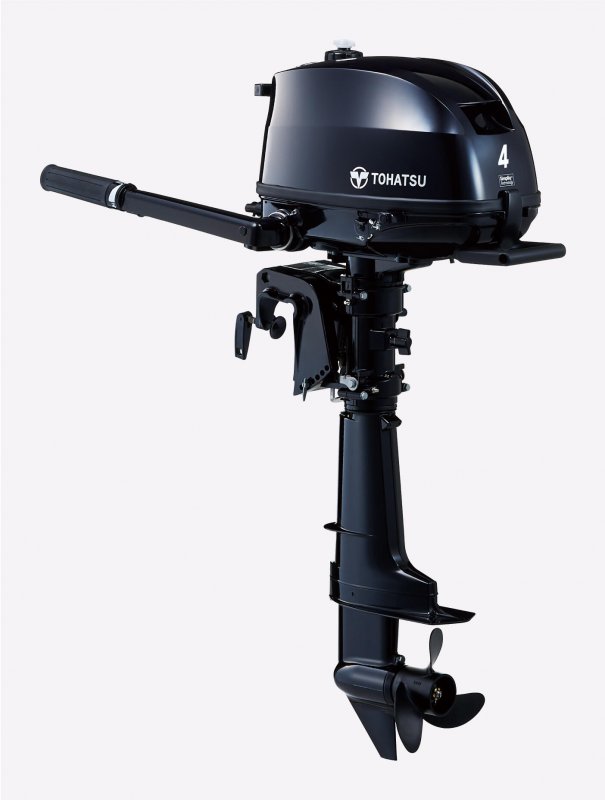

Tohatsu 4HP Standard Shaft Outboard Engine With Internal Tank
MPN: MFS4DDS
Tohatsu 4HP Standard Shaft Outboard Engine With Internal Tank. Latest model Store three ways!
login to saveProduct Description
Tohatsu 4 hp 4-Stroke Benefits
- Newly designed top and bottom cowls based on Tohatsu Design Philosophy for Marine Products
- 3-way storage positions without worrying about oil spill
- Light and compact!
- Front mounted shift lever, an industry first in its class!
- Designed with proven technology
- Greatly reduced vibration for smooth and stable running at all speeds
- Greatly reduced induction noise for a quieter ride
- Ultra-low emission, EPA and CARB 3-star rating approved.
Easy Operation and Handling
- Newly designed Tohatsu's euniquly designed front and back carrying handles for easier transportation
- Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
- Recoil starter with larger reel making manual starting fast and easy
- Shallow water drive*
- 6 trim positions*
- Adjustable steering friction for reducing steering effort*
- New longer Tiller Handle (110m extension!)
Fundamentals for User Convenience and Reliability
- Through-the-prop exhaust for a quieter ride
- Thermostatically controlled cooling system for consistent engine temperature
- Stainless steel water pump housing liner for outstanding durability
- High grade marine aluminum alloy that provides the ultimate protection against corrosion
- Zinc coating on internal water passages for superior corrosion resistance
- 3.1 Gallon (12 liter) fuel tank with fuel gauge
- Aluminum propeller
Protection
- Low oil pressure indicator
- Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
- Start-in-gear protection for safer engine starting
- Over-rev. limiter
*certain models
Full Specification
Engine 4 Stroke 1 Cylinder
Output 4 ps (2.9 kw)
Displacement 123 cc (7.5 cu.in.)
Bore x Stroke 59 x 45 mm (2.32 x 1.77 in)
Max. RPM Range 4,500 - 5,500
Starting Manual
Control Type Tiller
Handle Gear Shift Forward -- Neutral -- ReverseGear
Ratio 2.15:1
Propeller Selection Range 6" - 9"
Transom Height 15", 20"
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC- 4-stroke oil** SAE 10W-30/40 (SF,SG,SH,SJ)
Oil Capacity 450mL (15fl.oz.)
Fuel Tank 1.1L (0.29 US Gal.)
Integral Tank (includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank)
Weight *26 kg (57 lbs.)
Alternator Output Optional: 12V, 60W, 5A
Digital CD Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
Collection Only
This item is available for collection only.
