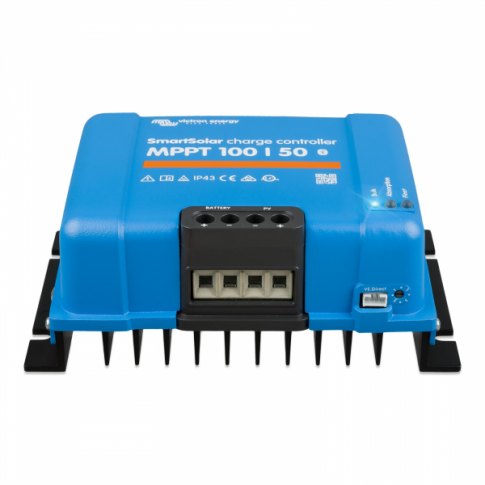

Victron Victron SmartSolar MPPT 100/50 50A solar charge controller for solar panels up to 700W (12V)

Product Description

Photonic Universe is an official distributor of products from Victron Energy - theglobally renowned manufacturer of high qualityhybrid power electronics. Victron Energy solar charge controllers have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

This Victron 100V 50A MPPTcontroller comesfrom the intelligent SmartSolar range, which uses the latest ultrafast MPPT technology tomaximise energy harvest whilst maintaining optimal battery health. This SmartSolar MPPT controller uniquely features built-in Bluetooth, to allow remote system monitoring via any Bluetooth enabled device.

Ultrafast MPPT Technology:

This 50A MPPT solar charge controller is designed to deliver the highest possible energy yield in the shortest amount of time.This is achievedthrough the use of high speed Maximum Power Point Tracking technology, whichtracks the maximum power voltage point of the solar panels as it varies depending on sunlight exposure and temperature.

Thistechnology enables the controller to produceup to30% greater energy yield than PWM controllers and as much as 10% more power than slower MPPT controllers. This advanced technologyallows the controller toperform extremely wellin low-light or cloudy conditions, as the controller consistently strives to extractthe maximumavailable power from the solar array.

Inbuilt safety protection:

Fully equipped with an extensive range of safety features, this controlleroffers completeprotection against potential hazards such as PV short circuit, PV reverse current, PV reverse polarity and battery reverse polarity. The internal temperature sensor also protects the battery from overheating and will activate power derating ifexcessive temperatures are detected. The controller also has self-diagnostic capabilityand highlightsany system errors using sophisticated fault-targeting technology.Theseare signalled via the high intensity LED indicators.

Inbuilt Bluetooth:

This SmartSolarcharge controller featuresbuilt-in Bluetooth which allows the user to easily connect to any Bluetooth enabled device, such as a mobile phone, tablet oriPadin order to accessthe VictronConnect App(no additional Bluetooth dongle required).Themobile app unlocksnumerous possibilities foradvanced programming and remote monitoring of your Victron SmartSolar system. Once the controller is paired with the app,a wide range ofadditional features are made available, including:

Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current (flowing into and out of the battery) as well as battery state of charge.

Detaileddata logs: System activity for the past 30 days is available toview; either as in-depth daily logs or as a monthly summary. These easy-view graphics display daily energy yield, maximum recorded power and voltage, time spent in each charging stage, minimum and maximum recorded battery voltages, error records and total energy counters.

The VictronConnect App isalso available to downloadas a PC version, for computers without bluetooth connectivity. If you would like tousethe PC version of the app to monitor/program your SmartSolar system, this controller can be connected to your PC via a VE Direct USB cable.

Optional Remote LCD Display:

The user can connect an optional MPPT Control panel (sold separately) to the controller to access a range of monitoring and programming functions. The display shows charging parameters (voltage, current,power) for the solar panel andbattery, as well as 30 dayperformance data. The user can also specifically set the duration and voltage of each charging stage.

Other features:

The Victron SmartSolar MPPT100/50 model is ideal for a wide range of applications as it is resistant to extreme temperatures, high altitudes, dusty environments and marine environments. The unit enclosure is IP43 water resistant with resin encapsulation of the internal electrical components and has a PD3 pollution rating.

This solar charge controller is also compatible with a wide range of battery types, including AGM, Gel, Tubular plate and Lithium batteries.

Click on the Details and Specifications tab for more information about this product.
