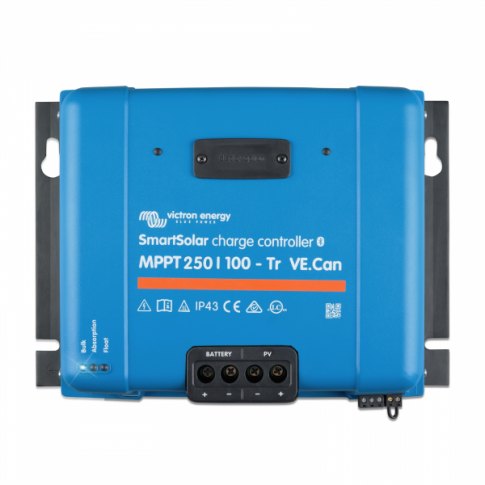

Victron Victron SmartSolar MPPT 250/100 100A solar charge controller for solar panels up to 1450W (1

Item: VSSM250-100

MPN: VSSM250-100

Intelligent 100A MPPT solar charge controller / regulator for solar panels up to 1450W (12V battery system) / 2900W (24V battery system)/ 4350W (36V battery system) / 5800W (48V battery system) and up to 250V, with inbuilt Bluetooth for advanced remote programming and monitoring. 5 year warranty.

Write the first review

£639.99

updown

Product Description



Photonic Universe is an official distributor of products from Victron Energy - theglobally renowned manufacturer of high qualityhybrid power electronics. Victron Energy solar charge controllers have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

This Victron 250V 100A MPPTcontroller comesfrom the intelligent SmartSolar range, which uses the latest ultrafast MPPT technology tomaximise energy harvest whilst maintaining optimal battery health. SmartSolar MPPT controllers uniquely feature built-in Bluetooth, to allow remote system monitoring via any Bluetooth enabled device, along with a programmable relay with various signalling options.

Ultrafast MPPT Technology:

This 100A MPPT solar charge controller is designed to deliver the highest possible energy yield in the shortest amount of time.This is achievedthrough the use of high speed Maximum Power Point Tracking technology, whichtracks the maximum power voltage point of the solar panels as it varies depending on sunlight exposure and temperature.

Thistechnology enables the controller to produceup to30% greater energy yield than PWM controllers and as much as 10% more power than slower MPPT controllers. This advanced technologyallows the controller toperform extremely wellin low-light or cloudy conditions, as the controller consistently strives to extractthe maximumavailable power from the solar array.

Inbuilt safety protection:

Fully equipped with an extensive range of safety features, this controlleroffers completeprotection against potential hazards such as PV short circuit, reverse polarity, overvoltage, overcurrent and reverse current, as well asbattery overvoltage, reverse polarity and overheating -monitored via the internal temperature sensor. The controller also has self-diagnostic capabilityand highlightsany system errors using sophisticated fault-targeting technology.Theseare signalled via the high intensity LED indicators.

Inbuilt Bluetooth:

This SmartSolarcharge controller featuresbuilt-in Bluetooth which allows the user to easily connect to any Bluetooth enabled device, such as a mobile phone, tablet oriPadin order to accessthe VictronConnect App(no additional Bluetooth dongle required).Themobile app unlocksnumerous possibilities foradvanced programming and remote monitoring of your Victron SmartSolar system. Once the controller is paired with the app,a wide range ofadditional features are made available, including:

Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current (flowing into and out of the battery) as well as battery state of charge.

Detaileddata logs: System activity for the past 30 days is available toview; either as in-depth daily logs or as a monthly summary. These easy-view graphics display daily energy yield, maximum recorded power and voltage, time spent in each charging stage, minimum and maximum recorded battery voltages, error records and total energy counters.

User-defined battery charging algorithm: Option to disable presetvalues in favour ofpersonalised charging parameters, including user-definedabsorption voltage, absorption time, float voltage, equalisation voltage and temperature compensation settings.

The VictronConnect App isalso available to downloadas a PC version, for computers without bluetooth connectivity. If you would like tousethe PC version of the app to monitor/program your SmartSolar system, this controller can be connected to your PC via a VE Direct USB cable.

VE.Can connection ports allow easy connection to Victron GX devices or other compatible solar controllers using a simple RJ45 cable.

Optional LCD display:

Alternatively, this SmartSolar controller featuresa connection area for an optionalPlug-in LCD display (sold separately). Simply remove the rubber seal on the face of the controller andplug in theremoveable LCD display to access a range of monitoring and programming functions. This display shows charging parameters (voltage, current,power) for the solar panel andbattery as well as 30 dayperformance data and any system faults. The user can also set their own charging parameters for a user-defined battery type, personalise settings for the load, charging stages and more.

Programmable relay:

This solar charge controller has programmable relay contacts, which can be programmed (e.g. with a smartphone, via the app) to start a generator or to send a low battery signal which will activatean audible alarm.

Other features:

The Victron SmartSolar MPPT 250/100 model is ideal for a wide range of applications as it is resistant to extreme temperatures, high altitudes, dusty environments and marine environments. The unit enclosure is IP43 water resistant with resin encapsulation of the internal electrical components and has a PD3 pollution rating.

This solar charge controller is also compatible with a wide range of battery types, including AGM, Gel, Tubular plate and Lithium batteries.

Click on the Details and Specifications tab for more information about this product.

Details



Specifications:

- The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
- Fully automated operation and auto 12 / 24 / 36* / 48V selection
- 2 pairs of terminals (solar panel, battery) for wires up to 35mm2
- Inbuilt bluetooth
- Programmable relay: AC rating: 240VAC /4A , DC rating: 4A up to 35VDC, 1A up to 60VDC
- Max solar panel voltage: 250V
- Max solar panel power: 1450W (12V) / 2900W (24V) / 4350W (36V) / 5800W (48V)
- Temperature sensor for automatic compensation (-16mV / -32mV / -48mV / -64mV / °C)
- Comprehensive electronic protection features
- Communication port: RS232 / TTLfor VE Direct accessories, RJ45 for VE.Can
- Self-consumption: <35mA (12V) / <20mA (48V)
- Working temperature: -30°C to +60°C
- IEC/EN certified
- Enclosure: IP43 (electronic components)/ IP22 (connection area)
- Pollution Degree rating: PD3
- Dimensions:216 x295 x103mm
- Mounting dimensions:273 x144 mm
- Weight: 4.5kg
- 4 x mounting holes (8mm diameter) for ease of installation



*36V selection available when usingthe Plug-in LCD display or VictronConnect App.

This product is covered by a5 year warranty. For more information please refer to our Terms and Conditions.

Installation



This product comes with a detailed user manual which explains wiring and operations (see Documents tab).
