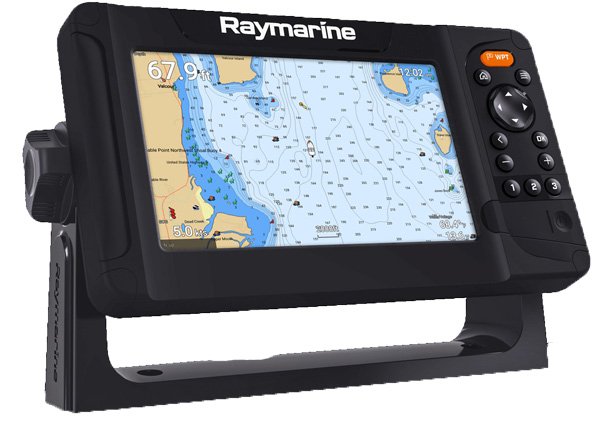

Element 9 HV - 9" Chart Plotter with CHIRP Sonar, HyperVision, Wi-Fi & GPS, No Chart & No Transducer
Item: E70534
MPN: E70534
Knowledge is power, and the Element 9 HV CHIRP Sonar -GPS from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
login to saveProduct Description
Key Features
• High-visibility sunlight viewable 7”, 9”, and 12” displays
• HyperVision CHIRP technology delivers super-high resolution sonar imagery
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Compact HV-100 all-in-one transducer combines Hyper, Down, Side, RealVision and conventional CHIRP sonar channels into one simple installation
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
And More Features
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy™ personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Support for Raymarine LightHouse NC2 with Fishing Hot Spots, Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration
Element Sonar Technology
- Outstanding resolution paired with spot-on positional information provides a level of sonar functionality that has never before been seen
- 1.2MHz HyperVisionTM provides super high-resolution imaging - Range: Up to 125ft in DownVision and SideVision modes
- 350kHz Standard imaging for great resolution and exceptional range - Range: Up to 600ft down and 300ft side
- 200kHz Traditional sonar to mark fish and track bottom at speed - Range: Up to 900ft down
- HyperVisionTM overlay on RealVision 3D providing an unprecedented level of resolution and positional awareness
- Unlike Axiom, Element is not equipped with an AHRS stabilized transducer so RealVision 3D only operates in scrolling mode
