Fork/Swage Metric Stainless Steel Rigging Screw

Product Description

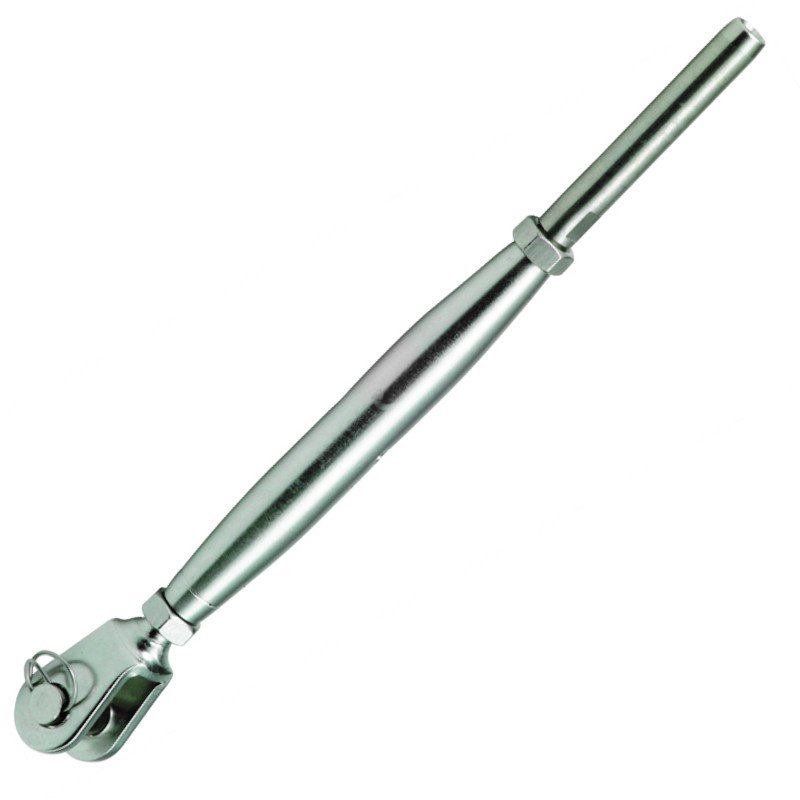

Welded Fork/Swage Rigging Screw High Polished Stainless Steel - AISI 316

Fitting a swage terminal requires the correct roll swaging machinery to ensure the correct and safe loadings are applied when the job is complete. Roll swaging is a forging process where the wire is inserted in to the terminal, and the two are compressed through a set of precision dies and a hydraulic press.

Swage terminals are available individually or we can manufacture new or replacement standing and running rigging to your specifications.

Call us to discuss your requirements

Terminal Specification:

• 3.0mm wire x M6 thread x 5.0mm pin dia - Closed 170mm x Extended 232mm
• 4.0mm wire x M6 thread x 5.0mm pin dia - Closed 180mm x Extended 242mm
• 5.0mm wire x M8 thread x 6.0mm pin dia - Closed 205mm x Extended 281mm
• 6.0mm wire x M10 thread x 8.0mm pin dia - Closed 243mm x Extended 327mm
• 7.0mm wire x M12 thread x 12.0mm pin dia - Closed 295mm x Extended 401mm
• 8.0mm wire x M12 thread x 12.0mm pin dia - Closed 310mm x Extended 416mm
