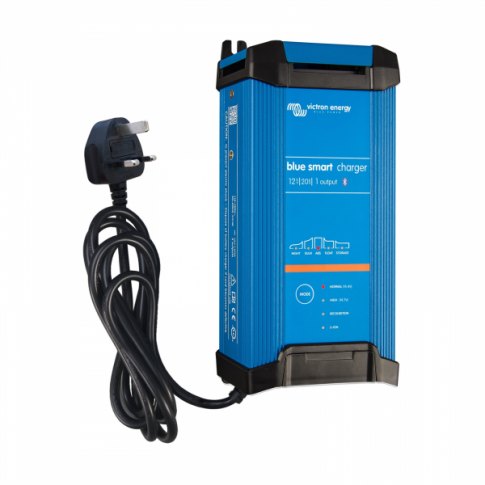

Victron Victron 20A 12V Blue Smart IP22 mains battery charger with Bluetooth connectivity

Product Description

Photonic Universe is an official distributor of products from Victron Energy - theglobally renowned manufacturer of high qualityhybrid power electronics. Victron Energyproducts have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

ThisVictron 20A 12VBlue Smart IP22 mains batterycharger is designed to enable safe and efficient unattended charging of a 12V battery or battery bank from a mains power source (220-240V AC). This mains charger boasts an outstanding 93%efficiency, along with an adaptive automatic 6-stage charging processto deliver faster and more efficient charging. This unit also uniquely features Bluetooth connectivity, which enables the user to remotely monitor the charging system on a mobile device.

This unitis ableto charge either a single 12V battery, or several 12V batteries connected in parallel (batteries must be the sametype, capacity and age).

This mains battery charger is compatible with Lithium batteries (with a dedicated charging mode to optimise performance) in addition to standard Lead Acid batteries including AGM, Gel and Wet cell batteries.

Key features:

- Safeunattended charging:Features inbuilt safety functions (protectionagainst DC short circuit, overheating, overcharging and reverse polarity of the battery), which allow the chargerto beleft permanently connected to the batteryfor unattended automatic charging.

- Adaptive battery management: Automatically adapts and optimises the charging processrelative to the way in which the battery is being used. This adaptive ability also limits corrosion within the battery by reducing time spent in the absorption stage when possible (eg. when charging a battery which is already nearly fully charged).

- Continued charging during battery use: Operates even while energy is being drawn from the battery during use.The unit will maintain the charge if the battery is already at full capacity.

- Powersupply function: Can provide a direct supply of power to a 12V load even when no battery isconnected.

- Dead battery recovery: The charger will attempt to recharge a deeply-discharged battery (will start chargingwhen a battery is at 0V) at a low current. As soon as sufficientbattery voltage is reached, normal charging will resume.

- Silent night mode: By selecting either the'night' or low' mode, the output current is reduced to max 50% of the nominal output and the charger enters a silent operation mode.

- Storage Mode: Designed to prevent aging of the battery when it is not in use. This mode is enabled whenever the battery has not been discharged for 24 hours. Storage mode minimises gassing and corrosion within the battery and prevents other major causes of early battery failure including sulphation.

- Bluetooth connectivity: Enables the user to remotely program settings (set battery type or charging current),monitor data (battery voltage, charge current, and charging cycle status) and download updates forthe system via any Bluetooth-enabled device, using the free VictronConnect App.

- Inbuilt temperature sensor: Measures the ambient temperature and automatically compensates for temperature when charging lead-acid batteries.

- Charging status LEDs: 9 LED lights on the front panel indicate the current charging stage (night, bulk, absorption, float, storage) and the charging mode (normal, high, recondition, Lithium).



This chargeris fitted witha1.5m mains AC cable witha UK 3-pin plug.

Click on the 'Details and Specifications' tab for more information about this product.
