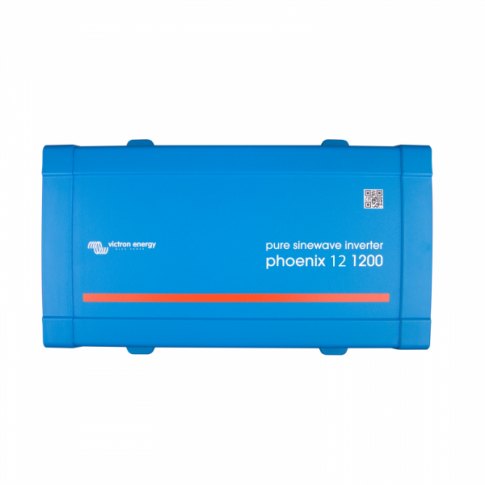

Victron Victron Phoenix Inverter 12/1200 230V with VE.Direct port

Product Description

Photonic Universe is an official distributor of products from Victron Energy - theglobally renowned manufacturer of high qualityhybrid power electronics. Victron Energy inverters have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

This Victron 1200VA 12V Phoenix Inverter uses advanced configurable protection functions to ensure maximum safety and efficiency of DC to AC power conversion. This Phoenix inverter uniquely features an inbuilt VE.Direct port, to allow remote system monitoring and programming via a range of communication methods.

Key features of this Victron 12/1200 Phoenix inverter include:

- High peak power handling: The peak power of 2200W is useful for poweringloads with a high initial start-up power.

- Superior build quality: The unit features a toroidal transformer which works at higher efficiency and with a cooler operating temperature compared to standard transformers.

- Inbuilt safety protection: Equipped with important safety features, such as protection against short-circuit, overload, battery overvoltage and overheating.

- Advanced monitoring and programming abilities: The VE.direct port of the inverter enables connection to a PC/Laptop to access the free VictronConnect software (requires VE.Direct to USB cable sold separately). Alternatively,an additional VE.Direct Bluetooth dongle (sold separately) may be connectedin order to wirelessly connect a smartphone/tablet to the inverter via the VictronConnect app. Using either of these connection methods will unlock the ability to monitor the system from a remote location and view important system data such as Voltage (battery and AC output), a load indicator andalarms. The user will also gain exclusive access to a range of options for remote programming of the system - for example, specifyingthelow-battery cut-off level (and level for reconnection),the output voltage and frequency (50/60Hz), settings for the power-saving ECO mode. There is also theoption to program the inverter so that the ignition control of your vehicle is used for switching the unit On/Off.

- Power-saving ECO mode: Switches the inverter into standby when the load power falls below a pre-set value. It will switch on every 2.5 seconds (adjustable) to check whether load power has returned to a sufficient level.

- Dynamic cut-off feature: Intelligently determines the DC disconnect voltage, by monitoring the rate of discharge from the battery (connection to VictronConnect app/software required).

- Remote On/Off Power function: Features a connection point for an optional remote on/off switch (not included).

- AC Power transfer: The invertercan be connectedto an optional automatic transfer switch (not included) to transfer the load to another AC power source.

- LED Indicators: Red / green LEDs show inverter operation and status of various protection features.


The inverter is fitted with a UK 3-pin plug socket.

Click on the Details and Specifications tab for more information.
